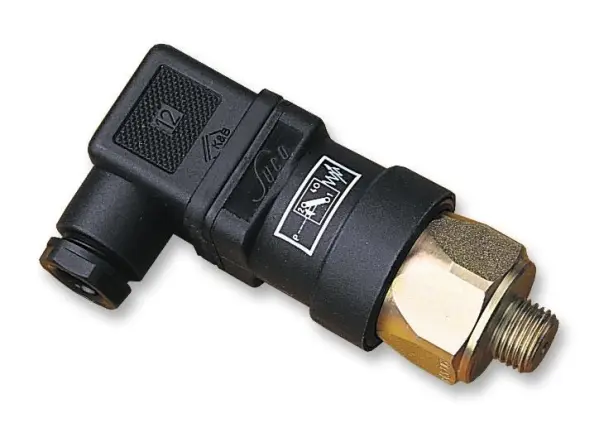

SUCO 0184 Series Diaphragm Pressure Switch 0.3-1.5bar to 10-100bar

The SUCO 0184 Series Diaphragm Pressure Switch is a robust and versatile pressure monitoring solution designed for demanding industrial applications. Featuring a reliable SPDT changeover contact rated at 4A and an integrated DIN connector, this switch ensures seamless integration into your control systems.

Built with a zinc plated steel body for durability and corrosion resistance, this pressure switch offers a wide operating pressure range from 0.3-1.5bar up to 10-100bar, with an impressive overpressure capability of up to 300bar. The diaphragm seal is available in Nitrile, EPDM, or Viton, allowing you to select the ideal material for your specific media compatibility requirements.

The switch delivers precise and repeatable performance, with an IP65 protection degree ensuring reliable operation in harsh environments. It can withstand over 106 operations at 50bar pressure, demonstrating exceptional longevity and dependability.

Specifications

_ Pressure Range: 0.3-1.5bar to 10-100bar (adjustable) _ Overpressure: Up to 300bar _ Contact Configuration: SPDT changeover _ Switching Current: 4A (max) _ Switching Voltage: 250VAC, 24VDC (resistive) _ Electrical Connection: DIN connector _ Process Connection: G1/4” BSP _ Body Material: Zinc plated steel _ Diaphragm Seal Options: Nitrile, EPDM, Viton _ Protection Degree: IP65 _ Operating Temperature: -30°C to +100°C
