Switchcraft 90 Degree 1/4

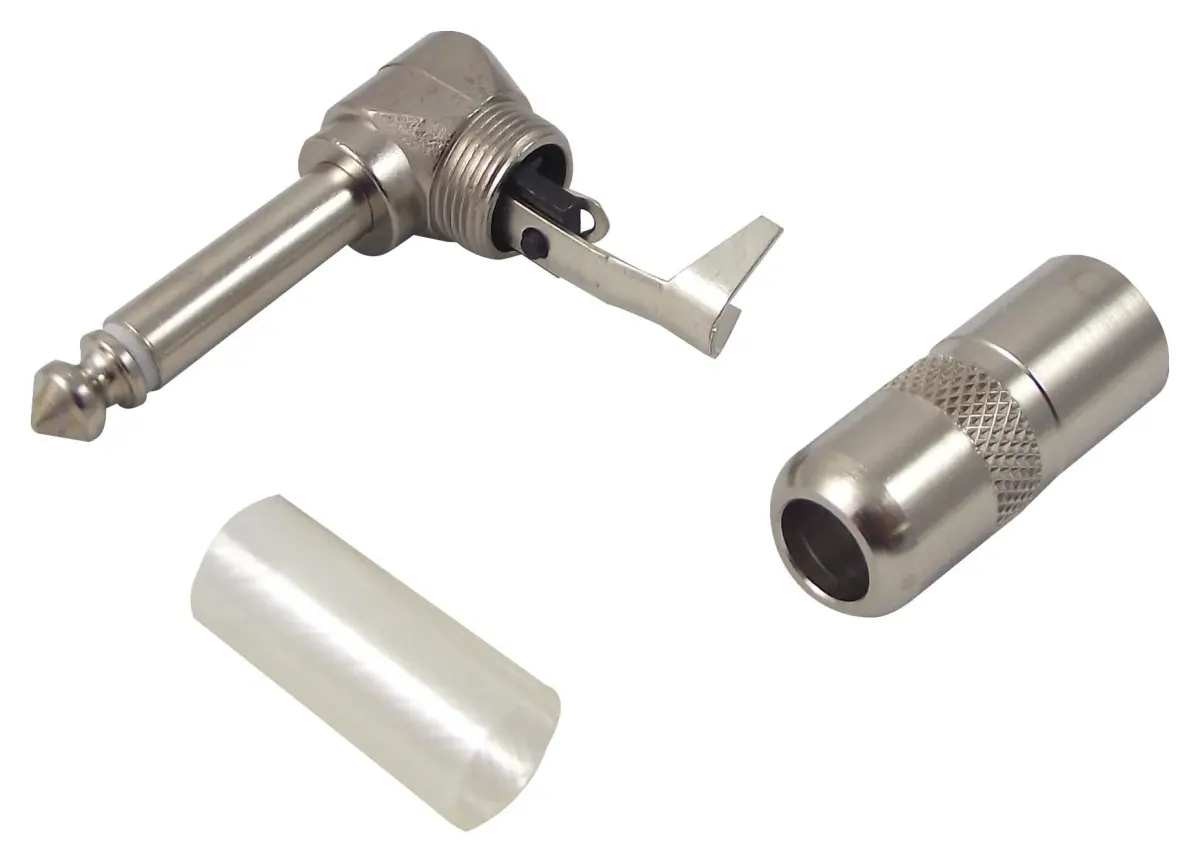

The Switchcraft 226 is a professional-grade, right-angled, 1/4-inch mono plug designed for cable-mounting. It features a robust construction with a nickel-plated brass tip rod and handle for excellent conductivity and durability. The housing and sleeve are made from a copper and nickel-plated zinc die-cast, offering strength and reliable shielding. Internal connections are ensured by a tin-plated brass tip terminal and a tin-plated steel sleeve terminal, all insulated with high-quality thermoplastic material.

Engineered for superior performance in demanding audio environments, this plug boasts an exceptional minimum initial insulation resistance of 50,000 MΩ. It operates reliably across a wide temperature range from -20 to +65°C, making it suitable for both indoor and outdoor use. The compact 90-degree design is ideal for saving space and reducing strain on cable connections, which helps prevent damage and signal interruption.

Key Features & Specifications

• Connector Type: 2-conductor (mono) 1/4-inch plug
• Mounting: Cable-mount
• Angle: Right-angled (90-degree)
• Contact Plating: Nickel-plated for optimal signal transfer and corrosion resistance
• Body Material: Metal (copper and nickel-plated zinc die-cast)
• Terminals: Tin-plated brass (tip) and tin-plated steel (sleeve)
• Insulation: Thermoplastic
• Insulation Resistance: 50,000 MΩ minimum (initial)
• Operating Temperature: -20°C to +65°C
• Dimensions: 33mm (Height) x 22mm (Width) x 2mm (Depth)
• Weight: 30 grams

This plug is a fundamental component for creating reliable, high-quality audio connections where a low-profile, robust connector is required.
