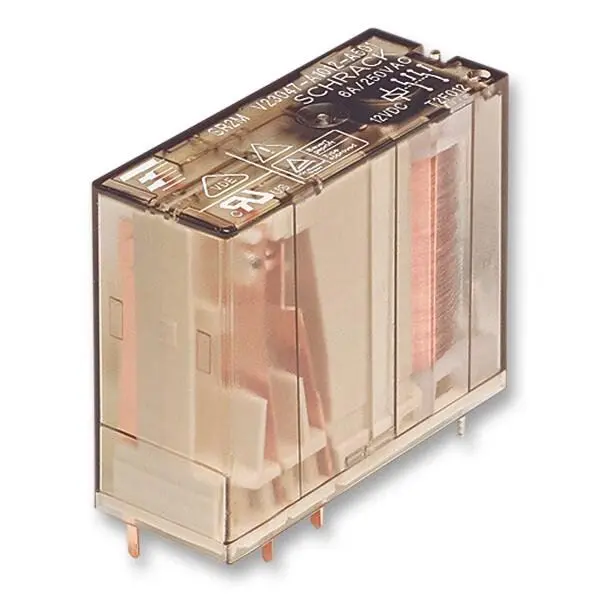

TE CONNECTIVITY SR2M Series Forced Guided Relay - 24V

The TE CONNECTIVITY SR2M Series Forced Guided Relay is a robust and reliable electro-mechanical component, specifically engineered for safety-critical applications where dependable operation is paramount. Its force-guided (or mechanically linked) contact design ensures that all moving contacts operate simultaneously and cannot become stuck in an intermediate position, providing a guaranteed contact status which is essential for safety functions.

Constructed with durable materials, this relay features a DC coil and is equipped with 2-form-C (2CO) Silver Nickel (AgNi) contacts. These contacts offer excellent conductivity and resistance to welding, ensuring consistent performance and a long operational life under frequent switching cycles. The relay is designed with reinforced insulation between its poles, significantly enhancing its dielectric strength and safety rating for applications involving higher voltages or stringent isolation requirements.

This model is characterised by its through-hole mounting style and PC pin terminals, facilitating a secure and straightforward installation onto printed circuit boards. The compact form factor, coupled with a broad ambient temperature operating range from -25 to 70°C, makes it suitable for integration into a wide variety of industrial electronic systems and control panels, even in challenging environmental conditions. It is a versatile and trusted component for engineers designing systems where safety and reliability cannot be compromised.

Variant Details

• Size: 24V
