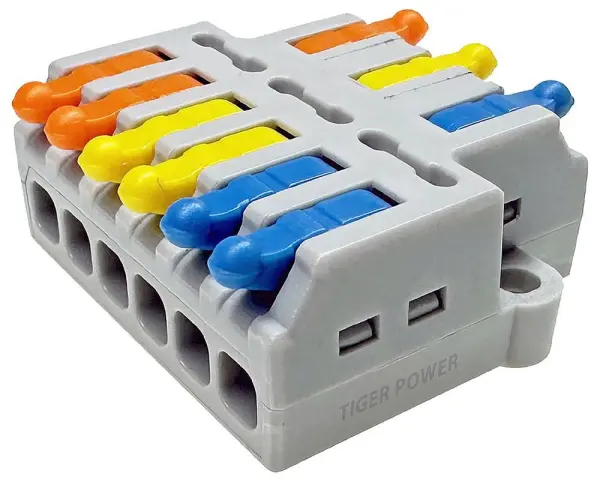

Tiger Power 3-in 6-out Quick Lever Wire Connector Block, 32A, 250V AC, Pack of

The Tiger Power Supplies TGR-QC-3-6 is a professional-grade quick wire lever lock terminal block connector splitter, offering a modern and efficient alternative to traditional screw-type terminal blocks. Its innovative screwless design revolutionises installation, allowing for fast, secure connections without the need for any tools, saving significant time and effort on the job.

This connector features a 3-way input and 6-way output configuration, making it an ideal splitter for distributing power or signals to multiple circuits from a single source. Each connection point is equipped with a colour-coded lever lock mechanism. Simply lift the lever, insert the prepared wire, and close the lever to create a reliable, vibration-resistant connection. The lever termination system ensures a faster and more consistent installation compared to manual screw tightening.

Rated for a maximum of 32A at 250V AC, this block is suitable for a wide range of domestic and light commercial electrical applications. It accepts a broad wiring range from 0.08mm² to 4mm² (28AWG to 12AWG), providing excellent versatility for different cable sizes. The recommended strip length for optimal connection is 9mm.

Constructed from durable materials, this terminal block is designed for long-term reliability in electrical enclosures, control panels, and distribution boards. Its compact dimensions (31.8mm x 33.5mm x 13.7mm) allow for space-efficient mounting in tight spaces. Supplied in a convenient pack of five, it provides excellent value for multiple connection points within a project.
