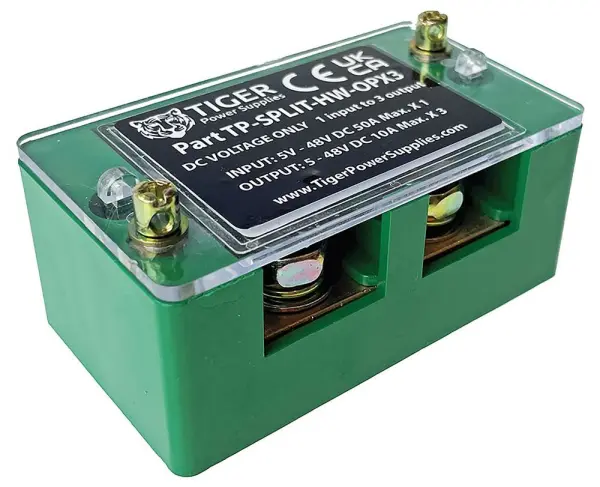

Tiger Power DC Voltage Splitter Terminal Black 1 in 3 out
Split one DC output to 3 devices. Tiger Power heavy-duty terminal splitter, 5-48V, 50A max input, 10A output. Ideal for LED drivers.
The Tiger Power TP-SPLIT-HW-OPX3 is a heavy-duty 3-way terminal block splitter designed to distribute a single DC power output to multiple devices. Ideal for use with LED drivers and power supplies, this splitter enables you to power up to four devices or luminaires from one source, simplifying installation and reducing the need for additional power supplies.
Key Features & Benefits
- High Current Capacity: Input side accepts up to 50A maximum, with each output rated at 10A maximum.
- Wide Voltage Range: Supports DC voltages from 5V to 48V, making it versatile for various low-voltage applications.
- Robust Construction: Heavy-duty terminal block design ensures secure connections and long-lasting performance.
- Complete with Accessories: Includes a terminal cover and screws for safe and tidy installation.
- Compatible with LED Drivers: Perfect for splitting the output of a single LED driver to power multiple LED fixtures or luminaires.
Specifications
- Input Voltage (DC): 5V to 48V
- Input Current (Max): 50A
- Output Current per Channel (Max): 10A
- Number of Outputs: 3
- Output Power (Max): 480W
- Connector Type: Terminal Block
- Wire Size (Max): 10 AWG
- Dimensions (H x W x D): 80 x 35 x 55 mm
This splitter is an essential component for any installation requiring multiple low-voltage connections from a single power source. Its colour is black, and it is part of the TP-SPLIT-HW-OPXx series, ensuring reliability and ease of use.
Need larger quantities? Need additional quantities? Get in touch and we'll arrange it for you.
