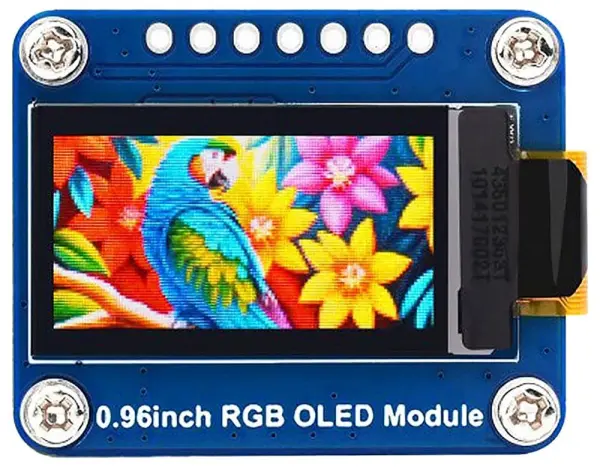

Waveshare 0.96in RGB OLED Display Module

The Waveshare 0.96in RGB OLED Display Module is a compact and vibrant display solution, perfect for adding high-quality visual output to your electronic projects. Featuring a crisp 64x128 pixel resolution and capable of displaying 65K RGB colours, this module brings your interfaces and data to life with stunning clarity and rich colour depth.

Designed with efficiency in mind, the module minimises the number of required IO pins. It comes equipped with an SPI interface for straightforward integration into your builds. By default, it utilises a 4-wire SPI interface, but this can be conveniently switched to a 3-wire SPI configuration using the solderable resistor located on the rear of the board.

Powered by the reliable SSD1357 display driver, the module operates on a versatile 3.3V or 5V operating voltage, making it highly compatible with standard microcontroller setups. The active display dimensions measure 10.86 x 21.74mm, while the overall board dimensions are a compact 26 x 33mm.

Important Note: Please ensure that the power supply voltage and logic voltage are consistent; otherwise, the display will not function correctly. Weighing just 16 grams, this versatile module is an excellent choice for makers and developers seeking a reliable and colourful display for their next build.
