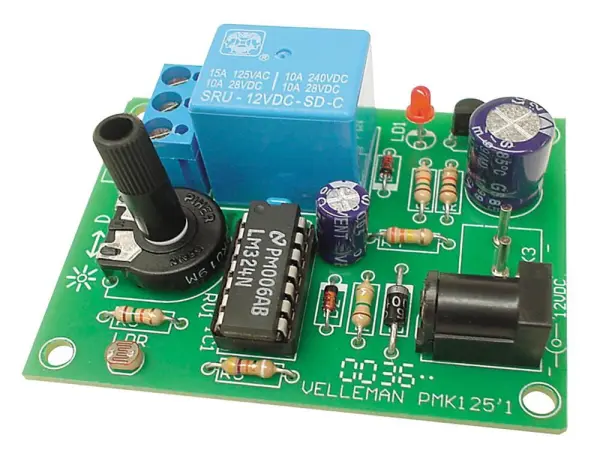

Whadda UK Light Sensitive Switch Kit

The Whadda UK Light Sensitive Switch Kit is a fully automatic solution designed to seamlessly switch your lighting on at dusk and off at dawn. This self-assembly electronics kit provides an engaging project for hobbyists and electronics enthusiasts, though please note that soldering is required to complete the build.

Featuring adjustable sensitivity, this switch allows you to fine-tune the ambient light level at which it activates. Additionally, it incorporates a delay circuit that prevents annoying flashing, ensuring smooth and reliable operation even during subtle light fluctuations. The unit operates on a 12V DC power source (adaptor not included) and offers a versatile relay output with both NO (Normally Open) and NC (Normally Closed) contacts, rated at 24V and a maximum of 5A.

Key Features

• Fully automatic dusk till dawn operation
• Self-assembly kit requiring soldering
• Adjustable sensitivity for custom activation levels
• Delay circuit to prevent flashing
• Relay output: NO/NC 24V, 5A max

Specifications

• Power source: 12V DC (adaptor not included)
• PCB Dimensions: 65 x 50mm
• Product Dimensions: 43 x 33 x 15mm
• Weight: 250g

This kit is ideal for creating custom automated lighting systems, saving energy by ensuring lights are only active when needed.
