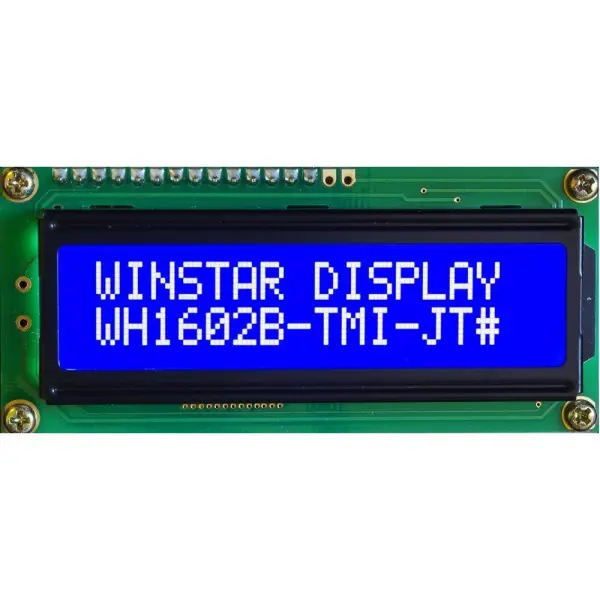

WINSTAR LCD Display Module, 16x2, Blue / White, STN

The WINSTAR 16x2 LCD Display Module offers a clear and efficient visual interface for your electronic projects. Featuring a blue and white transmissive STN display with negative contrast, this character LCD ensures excellent readability in various lighting conditions. It is designed to display two lines of 16 characters, utilising a 5x8 dot format that includes a cursor for precise text management.

Powered by the built-in ST7066U controller IC, the module supports a 6800 4/8-bit parallel interface as its default communication method. It operates on a logic voltage ranging from 3V to 5V, with an optional negative voltage available when using a +3V power supply. The display features a 1/16 duty cycle and a 6 o'clock viewing direction, optimised for standard viewing angles.

Key Specifications

• Character Display: 16x2 (5x8 dots with cursor)
• Controller: Built-in ST7066U
• LCD Type: STN, Negative, Transmissive
• Backlighting: Blue / White LED
• Font Set: English, Euro, Japanese
• Operating Temperature: -20°C to 70°C

Dimensions

• Module Dimension: 80 x 36 x 13.5mm
• View Area: 66 x 16mm
• Active Area: 56.2 x 11.5mm
• Dot Size: 0.55 x 0.65mm
• Dot Pitch: 0.60 x 0.70mm
• Character Size: 2.95 x 5.55mm
• Character Pitch: 3.55 x 5.95mm

This robust display module is suitable for a wide range of computing and industrial applications, providing reliable performance and straightforward integration.
