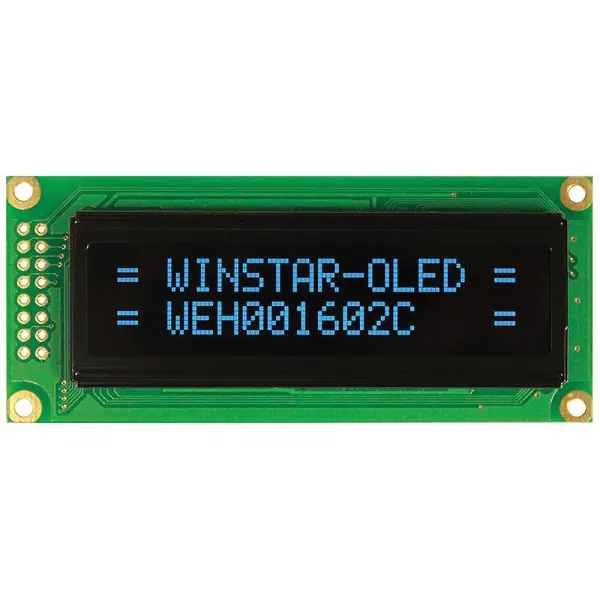

Winstar OLED Display Module, Blue, 16x2 Character, 5V

The Winstar OLED Display Module is a high-quality, monochrome character display offering superior clarity with a vivid blue on black appearance. This 16 character by 2 line module provides excellent contrast and wide viewing angles, making information easily readable in various lighting conditions. Its compact form factor makes it an ideal choice for integration into a wide range of electronic projects and professional equipment.

Constructed using Chip-on-Board (COB) technology, the module is robust and reliable. It operates on a 5V logic supply and features a 6800 parallel interface, controlled by the WS0010-TX integrated circuit. This combination ensures straightforward integration with many common microcontrollers and development boards. The OLED panel itself offers fast response times and low power consumption compared to traditional LCDs.

The display's detailed specifications ensure predictable performance. The viewable area is 66mm by 16mm, with an active area of 56.95mm by 11.85mm. Characters are clearly formed with a size of 4.74mm by 8.9mm. The module is designed to perform reliably in demanding environments, with an operating temperature range from -40°C to +80°C.

Key Specifications

• Display Format: 16 characters x 2 lines
• Panel Type: Blue OLED
• Appearance: Blue characters on a black background
• Interface: 6800 parallel
• Controller IC: WS0010-TX
• Logic Voltage: 5V DC
• Construction: Chip-on-Board (COB)
• Module Dimensions: 85mm (L) x 36mm (W) x 10mm (H)
• View Area: 66mm x 16mm
• Operating Temperature: -40°C to +80°C

Ideal for prototyping, instrumentation, consumer electronics, and embedded systems, this module delivers a crisp, modern display solution where readability and compact size are paramount.
