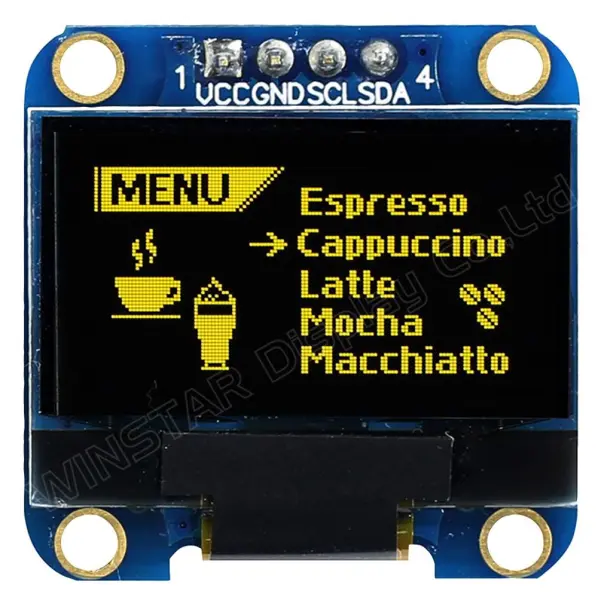

WINSTAR OLED Graphic Display Module, 128 x 64, Yellow, I2C

The WINSTAR OLED Graphic Display Module offers a compact and efficient visual solution for your electronic projects. Featuring a crisp 128 x 64 dot matrix resolution, this passive matrix display delivers clear and vibrant yellow visuals on a black background. The OLED technology ensures high contrast and wide viewing angles, making it highly suitable for applications where readability is essential.

Designed with a COG (Chip on Glass) construction and powered by the SSD1306 IC, this module provides reliable performance. It operates on a low logic voltage of 3V to 3.3V, making it ideal for battery-powered and low-energy devices. Communication is streamlined through an I2C interface, which simplifies wiring and integration into your existing system architecture.

The module dimensions are a minute 27.3 x 27.3 x 2.37mm, allowing for seamless integration into space-constrained enclosures, while the overall product dimensions are 43mm x 33mm x 15mm. With an operating temperature range spanning from -40°C to 80°C, this display module is well-equipped to perform reliably in demanding environments and varying conditions.

Key Specifications

• Dot Matrix: 128 x 64 Dots
• Display Appearance: Yellow on Black
• Logic Voltage: 3V to 3.3V
• Interface: I2C
• Drive Duty: 1/64 Duty
• IC: SSD1306
• Operating Temperature: -40°C to 80°C

Whether you are developing industrial equipment, consumer electronics, or embedded systems, this WINSTAR OLED module combines robust construction with excellent display capabilities to meet your project's visual output requirements effectively.
