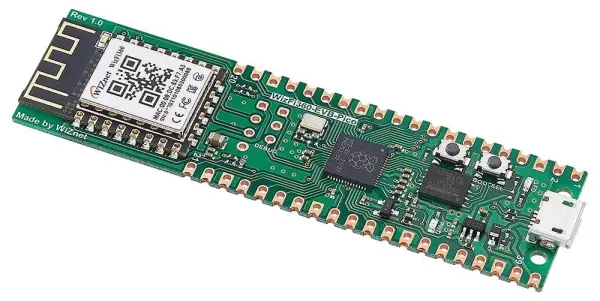

WIZNET WIZFI360-EVB RP2040 WiFi Microcontroller Development Board

The WIZNET WIZFI360-EVB is a feature-rich development board built around the powerful RP2040 microcontroller from Raspberry Pi, integrating a dedicated WizFi360 module to provide seamless 2.4GHz WiFi connectivity. This board is an excellent platform for creating wireless IoT (Internet of Things) devices, smart sensors, and connected projects without the need for additional shields or adapters.

Its design is pin-compatible with the popular Raspberry Pi Pico, allowing developers to leverage existing Pico libraries, code, and accessories. A key note is that GPIO pins 4, 5, 6, 7, and 20 are dedicated to the WiFi module; when using WiFi functionality, these pins cannot be repurposed for other uses. This integrated approach simplifies prototyping and reduces component count.

Core Features & Specifications

• Microcontroller: Dual-core ARM Cortex-M0+ (RP2040) processor.
• Memory: 264kB of SRAM and 2MB of onboard flash memory for program storage.
• Connectivity: 2.4GHz WiFi (802.11 b/g/n) via the WizFi360 module.
• Network Modes: Supports Station, Soft Access Point (SoftAP), and combined SoftAP+Station operating modes for flexible network configurations.
• Hardware Interfaces: Includes 2x SPI, 2x I2C, 2x UART, and 16x controllable PWM channels for connecting a wide array of sensors, displays, and actuators.
• System Features: A real-time clock (RTC) and timer with four alarms for time-sensitive operations.
• Power & Data: A single Micro-USB port is used for both powering the board and for serial communication/data transfer.
• MAC Address: Features a unique, user-configurable MAC address for network identification.

With its compact form factor and robust set of features, the WIZFI360-EVB is the perfect tool for students, hobbyists, and professional engineers embarking on wireless embedded system projects.
