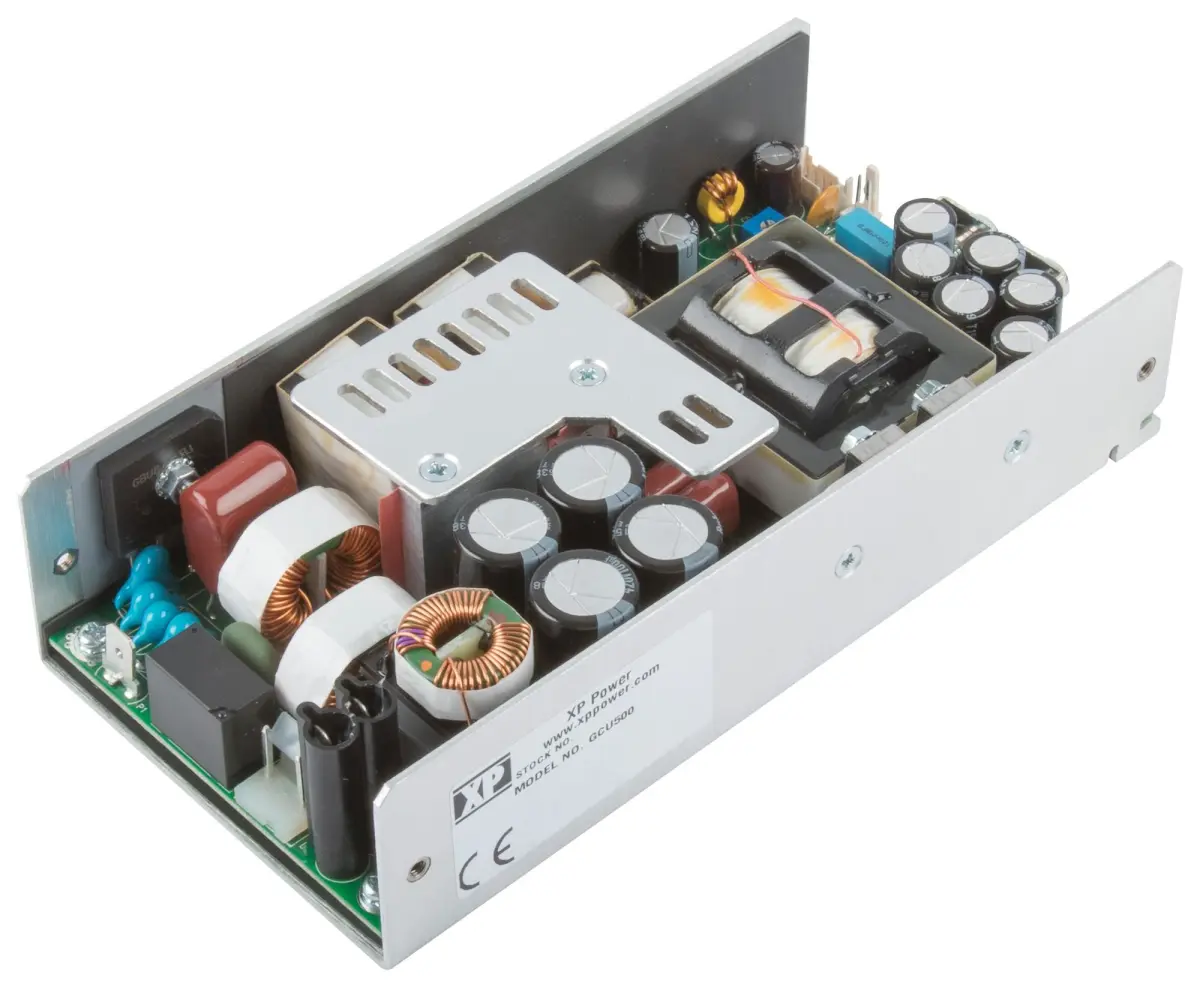

XP Power GCU500 Open Frame Power Supply, Medical Approval, 24V, 250W/500W

The XP Power GCU500 Open Frame Power Supply is a versatile and robust AC/DC power unit designed to deliver reliable power in demanding environments. Encased in a compact 3.3” x 6.5” x 1.55” package, it offers high power density while achieving EN55011/32 Class B conducted emissions compliance. A key feature is its exceptionally low earth leakage current, making it well-suited for a wide range of 1U and other sensitive applications in industrial, IT, and the critical medical sectors.

This power supply provides flexible output ratings depending on the cooling method: it delivers a solid 250 watts under convection cooling and a powerful 500 watts when forced-cooled with 10 CFM airflow. It features a universal input voltage range of 80 to 264 VAC, ensuring compatibility with power grids worldwide. The main output is a fixed 24VDC, capable of delivering 10.4A, and it includes a useful 5V standby output for auxiliary functions.

Engineered for maximum reliability, it operates across an extensive temperature range from -40°C to +70°C. It comes with full IT and medical safety approvals, underscoring its suitability for life-critical equipment. Additional intelligent features include remote on/off control and a power-fail signal for system monitoring and management.

Ideal for applications requiring stable, clean, and safe power, the GCU500 is a cornerstone component for system integrators. Its open-frame design allows for easy integration into host equipment, while its high efficiency and compliance with stringent emission standards ensure it meets the needs of modern electronic systems.
