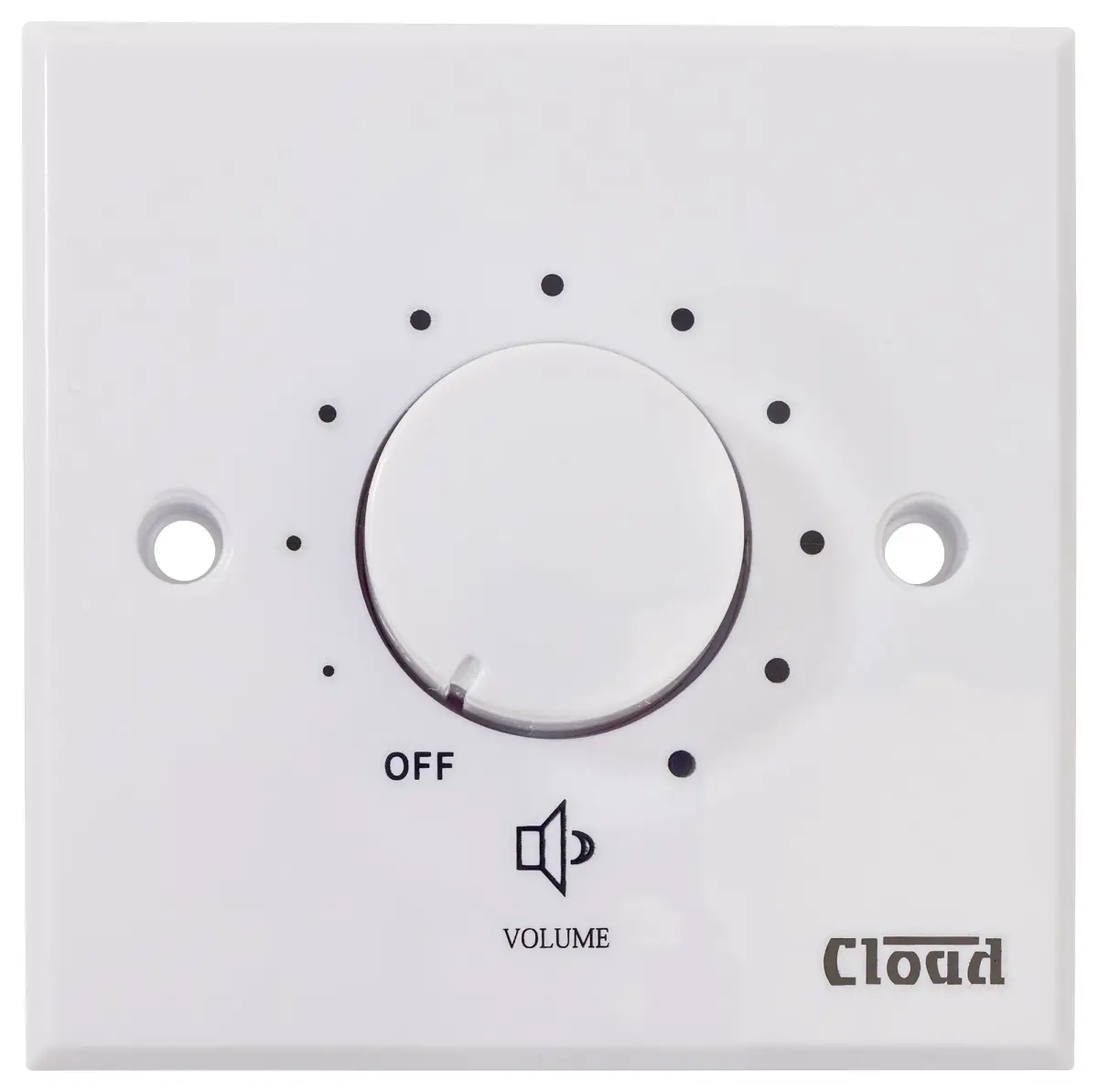

Cloud 100V Attenuated Volume Control - 6W

The Cloud 100V Attenuated Volume Control from the Contractor Series is designed to seamlessly support the family of Contractor Series electronics, including the VMA Series of mixer amplifiers and the VA Series of multichannel power amplifiers. Engineered for versatility, this 100V line attenuated volume controller can be integrated into any 100V line circuit, providing precise audio level management for your commercial sound system.

This volume control offers the ability to precisely adjust the audio level of individual 100V speakers or multiple 100V speakers configured in a daisy chain wiring setup. This makes it an ideal solution for environments where zoned audio control is required, allowing for tailored sound levels across different areas without affecting the entire system.

Key Features

• Designed for use with Cloud Contractor Series electronics
• Compatible with any 100V line circuit
• Allows precise control of individual or daisy-chained 100V speakers
• Features a 10-step attenuation including an OFF position
• Standard 1 Gang UK fixing for easy installation

Technical Specifications

• Attenuation Positions: 10 Plus Off
• Attenuation Steps (dB): 0, -3, -6, -9, -12, -15, -17, -20, -26, -32, OFF
• Output Level (dBrA): -10, -31, -16, -20, -22, -25, -28, -31, -36, -42
• Nominal THD: 0.02%
• Frequency Response: 20Hz to 20KHz, +3.9dB to -1.4dB
• Termination: 4 Pin Euroblock
• Faceplate Material: ABS
• Dimensions (HxWxD): 87 x 87 x 50mm

Whether you are configuring a multi-zone audio system in a retail space, restaurant, or office building, the Cloud 100V Attenuated Volume Control delivers reliable and precise performance, ensuring optimal audio distribution and user control.

Variant Details

• Size: 6W
