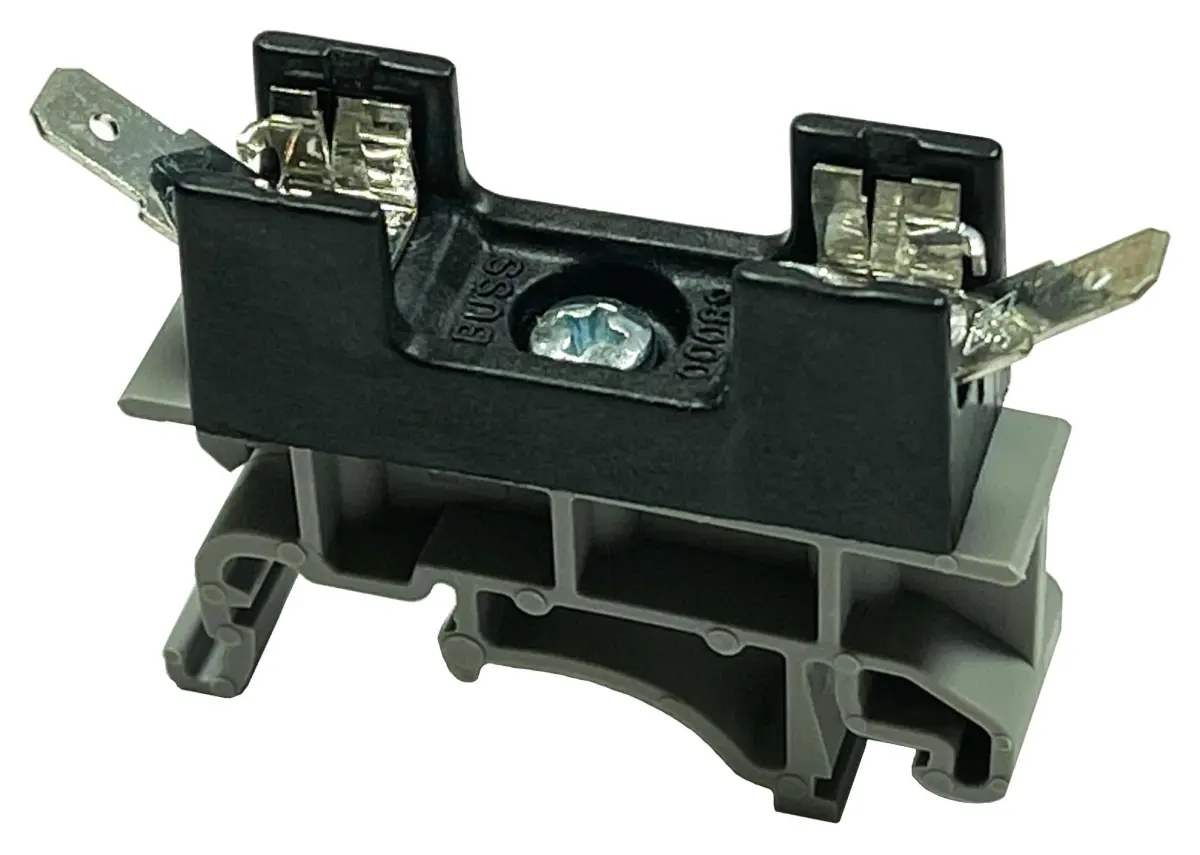

EATON BUSSMANN S-8000 Series Cartridge Fuse Holder - 20A

The EATON BUSSMANN S-8000 Series Cartridge Fuse Holder is a robust and reliable electrical component designed for secure fuse mounting and connection. Engineered to accommodate 1/4” x 1-1/4” cartridge fuses, this holder is rated for a substantial current of 30 Amps, making it suitable for a wide array of medium-duty electrical applications. Its construction prioritises safety and durability, with a high voltage rating of 600V AC/DC, ensuring dependable performance in demanding environments.

A key feature is its convenient quick-connect terminals, which facilitate swift and tool-free installation, saving time and reducing wiring complexity. The compact and sturdy design provides excellent mechanical protection for the fuse, while also offering a neat and professional finish to any electrical panel or installation.

Key Specifications & Applications

This single-fuse holder is ideal for industrial control panels, machinery, power supplies, and various electrical distribution systems where reliable circuit protection is paramount. Its S-8000 Series designation signifies adherence to rigorous quality standards. The precise engineering ensures a secure fit for the specified fuse size, maintaining optimal electrical contact and thermal performance.

Constructed from high-grade materials, it is built to withstand vibration, heat, and the rigours of industrial use. The clear product designation and standardised footprint make it an easy choice for maintenance and replacement, helping to minimise downtime. By integrating this EATON BUSSMANN fuse holder into your system, you are selecting a component that combines proven performance with user-friendly design for superior circuit protection.

• Fuse Type: Cartridge Fuse Holder
• Fuse Current Rating: 30 Amps
• Fuse Size Held: 1/4” x 1-1/4”
• Terminal Type: Quick Connect
• Number of Fuses: 1
• Product Series: S

Variant Details

• Size: 20A
