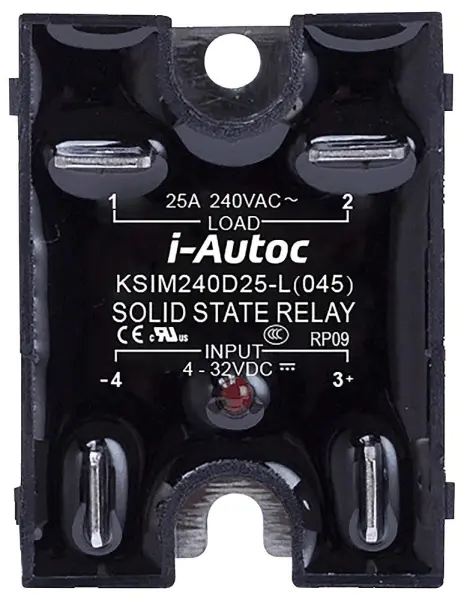

I-AUTOC Single Phase AC Output Solid State Zero Crossing Panel Mount Triac - 240V 25A

The I-AUTOC Single Phase AC Output Solid State Zero Crossing Panel Mount Triac Relay is a robust and reliable switching solution designed for a wide range of industrial and commercial applications. This solid state relay (SSR) utilises a triac output device to provide efficient and quiet switching of AC loads without mechanical parts, ensuring long operational life and high switching speed.

Featuring a zero crossing switching mode, this relay minimises electrical noise and inrush current, protecting sensitive equipment and improving overall system performance. With a dielectric strength of 4000Vrms, it offers excellent isolation between input and output, enhancing safety in demanding environments.

The relay supports a load voltage range from 24V AC to 440V AC and a control voltage between 4VDC and 32VDC, making it versatile for various control systems. Its internal RC/MOV protection circuit safeguards against voltage transients, while the LED indicator provides clear visual status for easy monitoring.

Designed for panel mounting with screw terminals, this relay simplifies installation and maintenance. The compact size and lightweight construction allow for space-efficient integration into control panels.

Key Features

• Output device: Triac
• Switching mode: Zero crossing
• Dielectric strength: 4000Vrms
• Load voltage: 24V AC to 440V AC
• Control voltage: 4VDC to 32VDC
• Internal RC/MOV protection circuit
• LED indicator for status
• Panel mounting with screw terminals
• Compact design: 43mm x 33mm x 15mm

This solid state relay is an ideal choice for applications requiring reliable, noise-free AC switching, including industrial automation, heating controls, and lighting systems. Trust I-AUTOC for quality and performance in every switching operation.

Variant Details

• Size: 240V 25A
