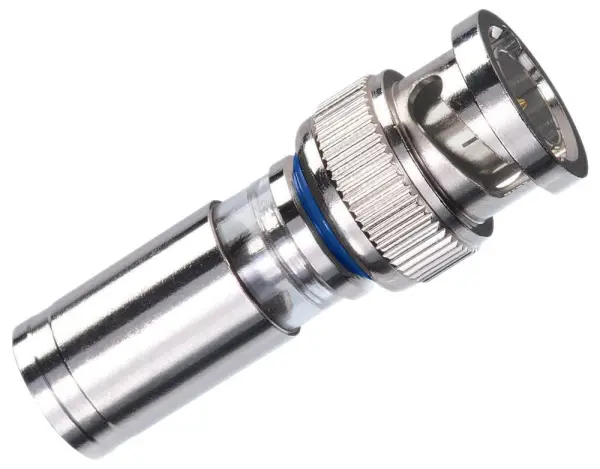

IDEAL RG6 BNC Compression Coax Connector Plug

The IDEAL RG6 BNC Compression Coax Connector Plug is a premium, high-performance component designed for reliable signal transmission in professional and domestic video installations. Constructed from nickel-plated brass with gold-plated fixed centre pin contacts, it ensures excellent conductivity and superior corrosion resistance for long-term, dependable performance. A key innovation is the integrated InSITE™ window, which allows installers to visually verify that the cable has been inserted correctly before the compression process is completed. This feature significantly reduces installation errors and costly rework, ensuring a perfect connection every time.

Rated for frequencies up to 3 GHz and an impedance of 75Ω, this connector is perfectly suited for all video-based applications. It is the ideal choice for connecting security cameras, CCTV systems, video distribution networks, satellite television receivers, and other audiovisual equipment where signal integrity is paramount. The compression termination method provides a robust, weather-resistant, and gas-tight seal that is far more reliable than traditional crimp or twist-on connectors, minimising signal loss and maximising picture quality.

This connector is specifically engineered to fit standard RG6 coaxial cables. It accommodates cables with a jacket diameter between 5.7mm and 7.74mm and a dielectric diameter from 4.26mm to 4.64mm. It is compatible with solid centre conductors ranging from 23 to 18 AWG, making it versatile for a wide array of common cable specifications. Installation is straightforward, requiring an industry-standard 1/4
