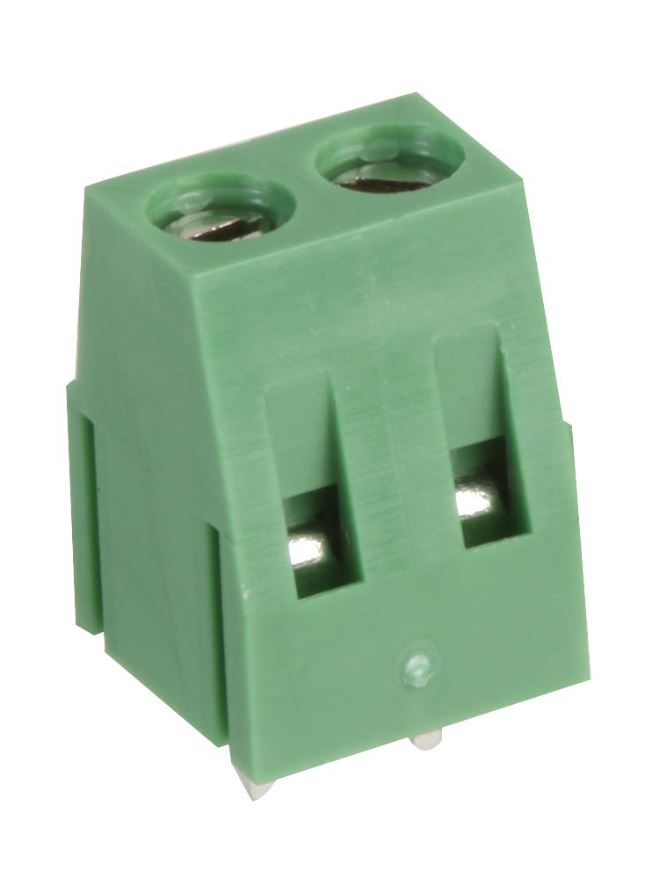

Multicomp Pro 2-Way 5mm PCB Terminal Block, Screw, 16A, 300V
Reliable 16A, 300V terminal block for industrial use. Tin-plated brass terminal, screw connection, 5mm pitch.
The Multicomp Pro 2-Way 5mm PCB Terminal Block (MC000046) is a robust and reliable solution for industrial wire-to-board connections. Featuring a tin-plated brass terminal and a green polyamide 66 insulating body, this terminal block ensures excellent conductivity and durability. The nickel-plated steel cage clamp and screw provide a secure and stable wire connection.
Designed for flexibility, this modular terminal block can be combined with other Multicomp Pro modular or single-type terminal blocks, making it ideal for custom configurations. Its through-hole right-angle block orientation allows for efficient PCB mounting, saving space and simplifying installation.
Key Features:
- High Insulation Resistance: >2000MR at 500VDC
- Wide Operating Temperature Range: -40°C to 105°C
- Secure Wire Connection: Screw wire connection method
- Versatile Compatibility: Suitable for wire sizes from 26AWG to 12AWG
Industrial Applications:
- Industrial control systems
- Power distribution
- Automation equipment
- PCB assemblies
Please note: Due to high market demand, lead times for this product may be extended, and delivery dates are subject to fluctuation. Discounts are not applicable.
- Dispatched within 0-2 business days
- Delivery to United States: 3-5 business days*
- Free Shipping Included
- Industrial control systems
- Power distribution
- Automation equipment
- PCB assemblies
- Pitch Spacing: 5mm
- No. of Positions: 2 Ways
- Wire Size AWG Min: 26AWG
- Wire Size AWG Max: 12AWG
- Wire Connection Method: Screw
- Rated Current: 16A
- Rated Voltage: 300V
- Block Orientation: Through Hole Right Angle
- Insulation Resistance: >2000MR at 500VDC
- Operating Temperature Range: -40°C to 105°C
- Terminal Material: Tin-plated brass
- Insulating Body Material: Green polyamide 66
- Cage Clamp Material: Nickel-plated steel
Always follow local regulations and product guidance.
