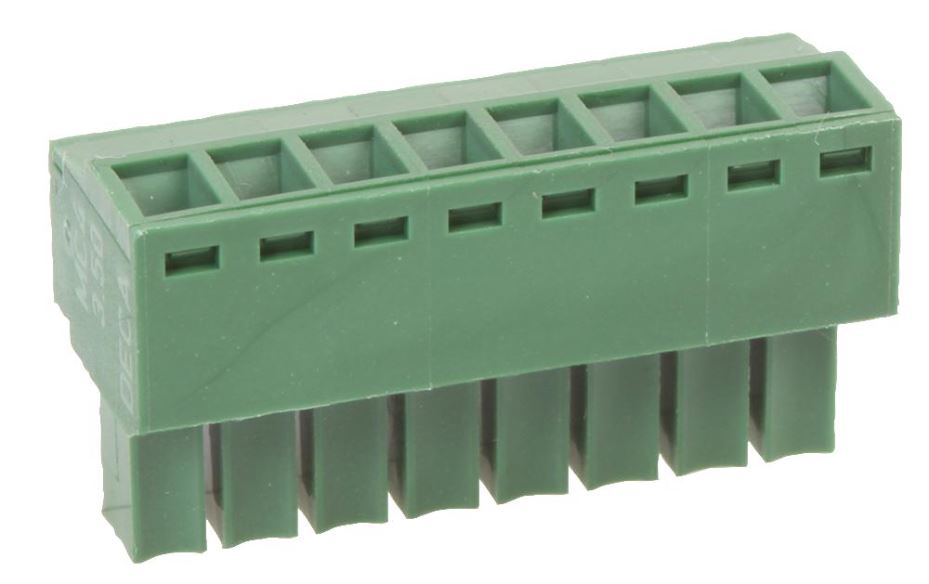

Multicomp Pro 3.5mm Pluggable Terminal Block, 8-Way, 10A
Reliable 3.5mm pluggable terminal block with 8-way positions, 10A rating, for industrial PCB applications.
The Multicomp Pro MC000061 is a high-quality 3.5mm pluggable terminal block designed for reliable PCB connections. Featuring a straight block orientation with 8-way positions, this terminal block ensures secure and stable electrical connections in various applications.
Constructed with a robust green polyamide 66 insulating body and tin-plated phosphor bronze terminals, it offers excellent durability and conductivity. The screw wire connection method provides a firm and secure attachment for wires ranging from 26AWG to 16AWG.
With a rated current of 10A and a rated voltage of 300V, this terminal block is built to handle demanding industrial environments. Its operating temperature range of -40 to +105°C ensures reliable performance in extreme conditions, while the insulation resistance exceeds 2000MR.
Key Features
- Pitch Spacing: 3.5mm
- Positions: 8-way
- Wire Size: 26AWG to 16AWG
- Wire Connection Method: Screw
- Rated Current: 10A
- Rated Voltage: 300V
- Insulation Resistance: >2000MR
- Operating Temperature Range: -40 to +105°C
- Dispatched within 0-2 business days
- Delivery to United States: 3-5 business days*
- Free Shipping Included
- Industrial applications
- Pitch Spacing: 3.5mm
- No. of Positions: 8 ways
- Wire Size (AWG): 26AWG to 16AWG
- Wire Connection Method: Screw
- Rated Current: 10A
- Rated Voltage: 300V
- Insulation Resistance: >2000MR
- Operating Temperature Range: -40 to +105°C
- Body Material: Polyamide 66
- Terminal Material: Tin-plated phosphor bronze
- Orientation: Straight block
