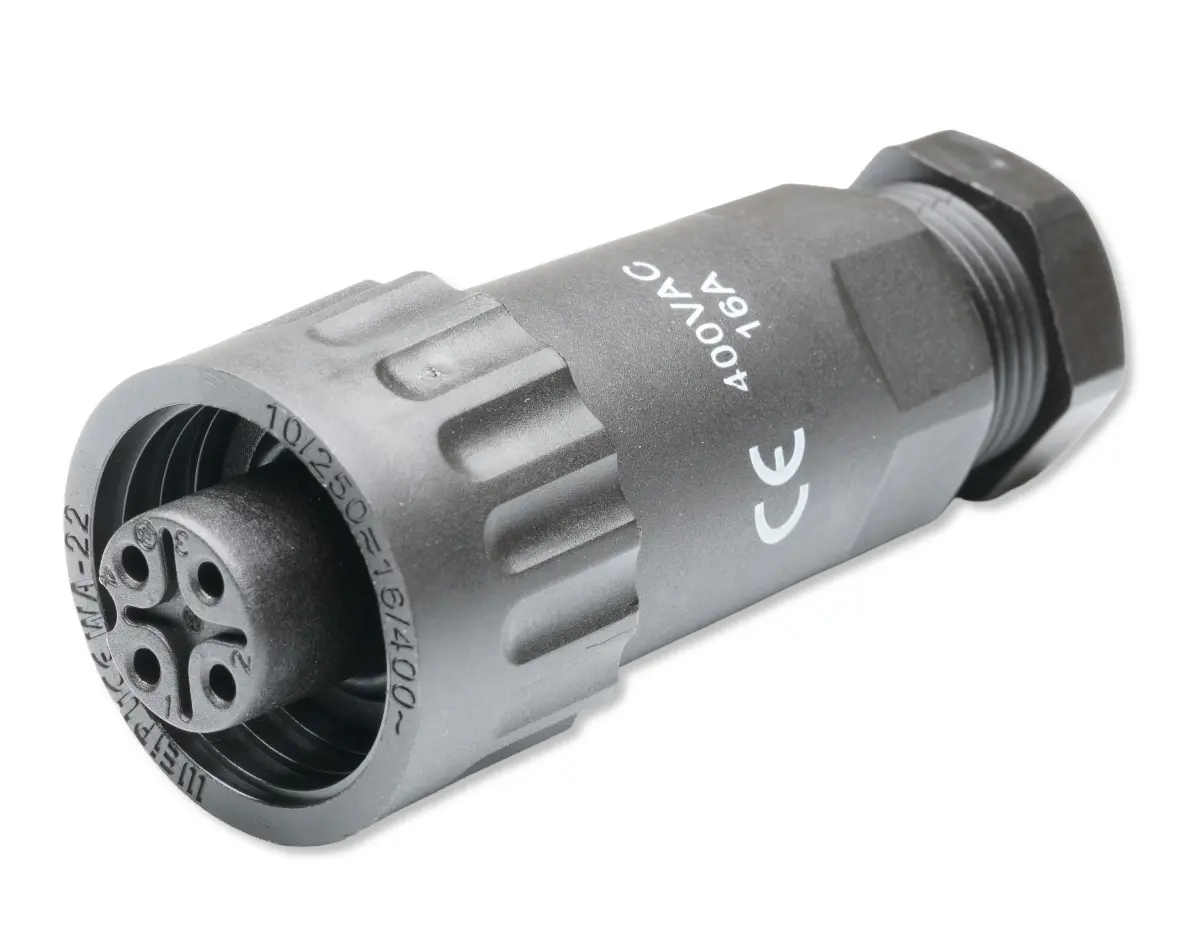

Multicomp Pro 4 Pole Circular Inline Socket, IP67, Screw Terminals - 10.5mm

The Multicomp Pro WA22 series of waterproof connectors are designed for robust and reliable performance in demanding conditions. Built to meet the stringent IP67 ingress protection rating, these circular connectors are effectively sealed against dust and can withstand temporary immersion in water up to 1 metre deep. This makes them an outstanding choice for environments where exposure to the elements, moisture, or contaminants is a concern.

Engineered with durability in mind, the series offers versatile termination options. They are available in 3+PE or 6+PE configurations, with respective current ratings of 16A and 10A, providing flexibility for different power and signal transmission requirements. The connectors feature screw terminal contacts for secure, reliable wiring connections, finished with a gold plating for excellent conductivity and corrosion resistance. The connector body itself is constructed from tough Nylon 6.6 (Polyamide 6.6), offering a strong, lightweight, and durable housing.

A key design feature is the choice of internal or external threading on the cable mount side. This provides maximum compatibility, allowing you to securely mate the inline socket to a corresponding panel mount connector or any other matching cable mount connector within the WA22 series. This interoperability extends across a comprehensive family of accessories, including 2-hole flanged panel mounts, standard cable mounts, short back shell mounts, 90-degree cable mounts, and the inline cable mount option represented by this product.

Specifications

• Connector Type: Sealed Circular Connector
• Coupling Style: Threaded
• Contact Type: Screw Socket
• Contact Material: Brass with Gold Plating
• Body Material: Nylon 6.6 (Polyamide 6.6)
• Ingress Protection: IP67 Rated
• Mounting Style: Inline Cable Mount (Receptacle)

With their solid construction,

Variant Details

• Size: 10.5mm
