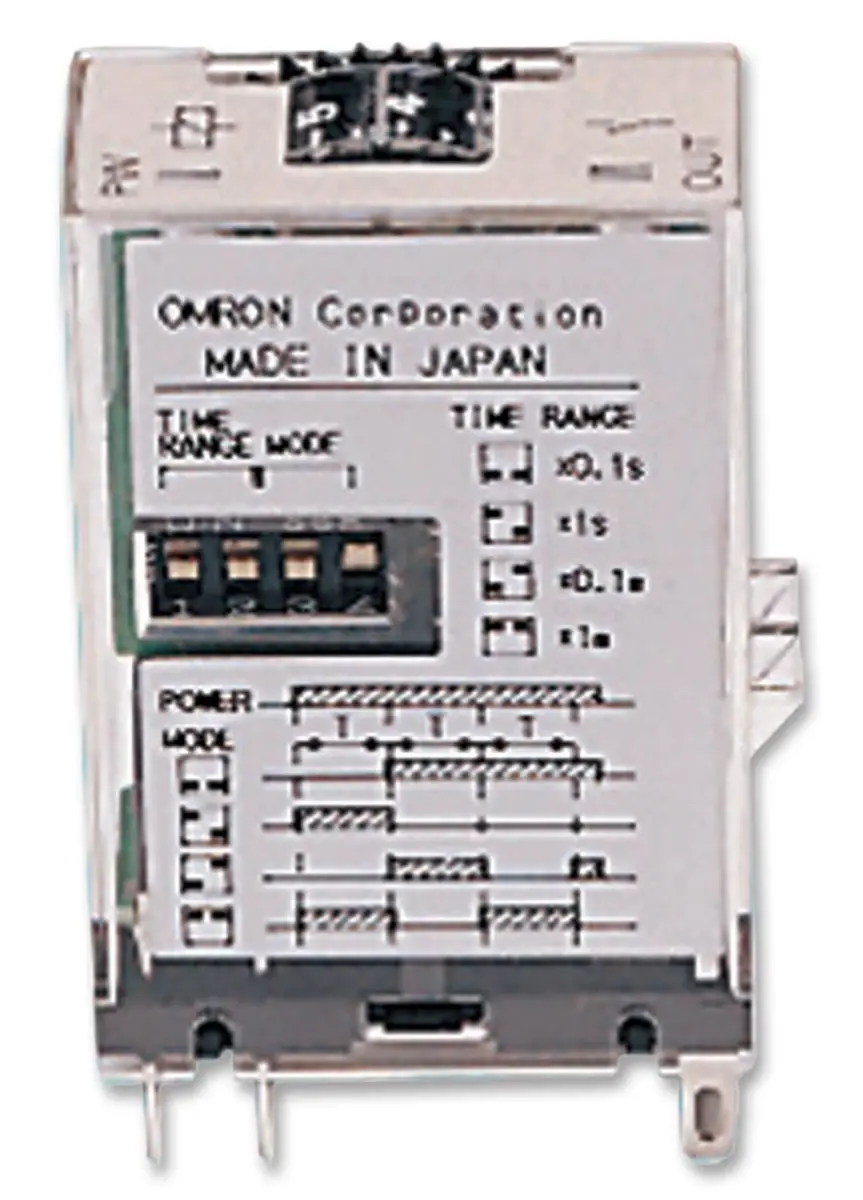

OMRON H3RN Multifunction Timer Plug-in, 24V DC, 3A

The OMRON H3RN Multifunction Timer is a 24V DC plug-in timer relay with a solid-state output rated at 3A nominal. It offers four selectable timing ranges from 0.1 seconds to 10 minutes and multiple operating modes for precise control in industrial and automation applications.

Overview

The H3RN is designed for accurate sequencing and process control within 24V DC circuits. Its multifunction design allows ON delay, interval, recycling OFF start and recycling ON start timing to be implemented with a single unit. The solid-state output can drive small relays, contactors, solenoids and indicator lamps directly.

Key Features

• Multifunction timing with ON Delay, Interval, Recycling OFF Start and Recycling ON Start modes
• Four selectable timing ranges from 0.1 seconds to 10 minutes
• Solid-state output rated at 3A nominal
• Plug-in connection for straightforward installation and maintenance
• Designed for use with Omron G2R relays and sockets
• Conforms to VDE 0435/P2021 and relevant EMC standards
• Compact dimensions of 43 mm (H) x 33 mm (W) x 15 mm (D)

Applications

Suitable for control panels in industrial and automation applications, the timer supports complex timing logic in compact installations. Its plug-in design simplifies installation and maintenance within a control panel.
