SparkFun Qwiic PIR Sensor Module, 170μA
Low-power PIR motion sensor with Qwiic connectivity. 5m range, 170μA standby current. Ideal for IoT and DIY projects.

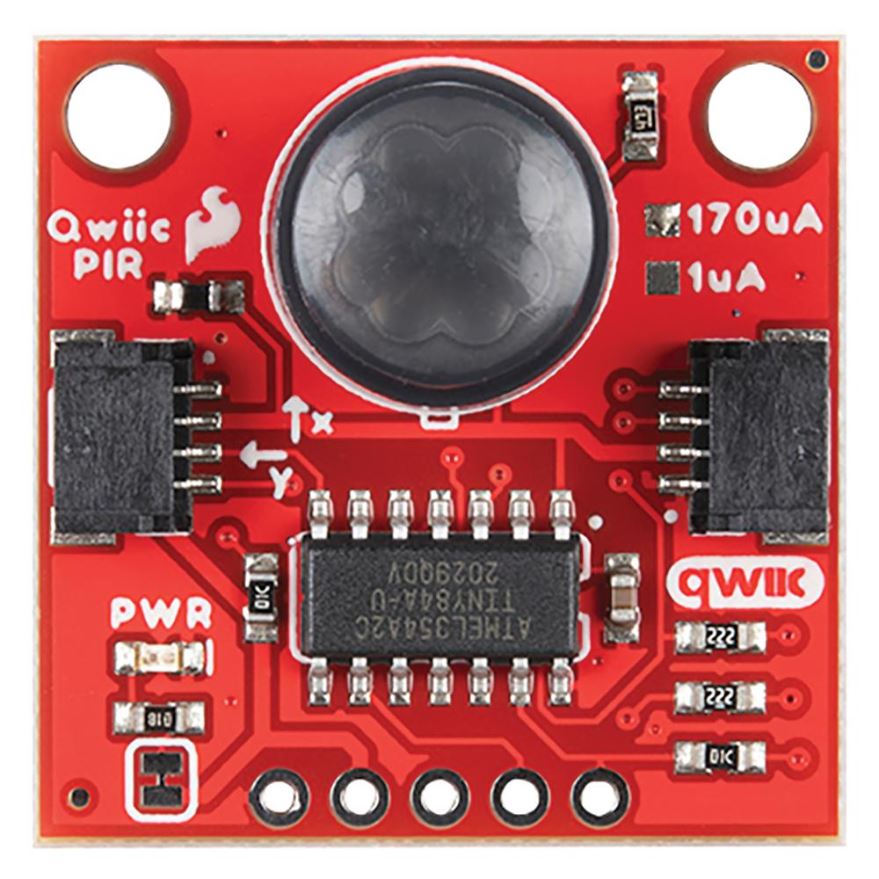

The SparkFun Qwiic PIR Sensor Module is a low-profile passive infrared (PIR) sensor designed for motion detection in close proximity applications. Featuring Panasonic's EKM-series PIR sensor paired with an ATTiny84 microcontroller, this module provides reliable motion sensing with minimal power consumption, making it ideal for continuously powered applications.
Key features include digital output across 32 detection zones, a 5-metre range, and a 90°x90° (±45°) detection area. With dual Qwiic connectors for easy I2C integration, this sensor simplifies prototyping and system development. The module also includes a 2x3 header on the back for reprogramming the ATTiny84 MCU, offering flexibility for custom applications.
Key Specifications
- PIR Sensor: Panasonic EKM-series
- MCU: ATTiny84 (reprogrammable via 2x3 header)
- Power Consumption: 170μA standby
- Detection Range: 5 metres
- Detection Area: 90°x90° (±45°)
- Communication: I2C via Qwiic connectors

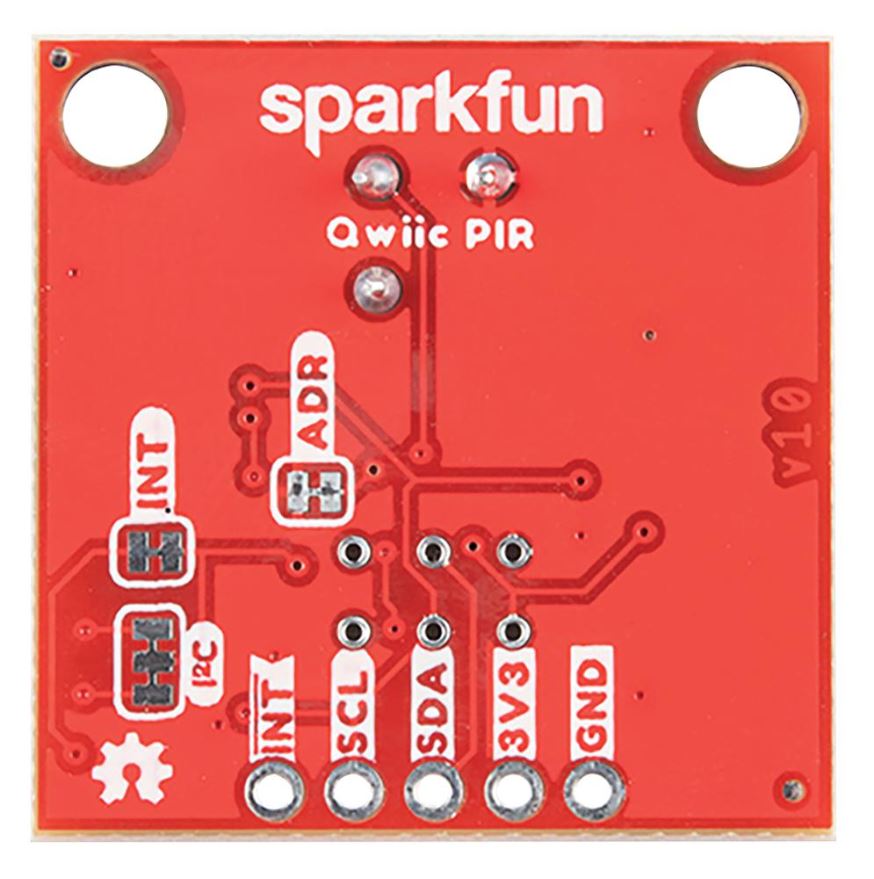

- Default I2C Address: 0x12 (0x13 selectable via solder jumper)
- Lens Dimensions: 10.9mm (H) x 10.4mm (Diameter)
This sensor is perfect for IoT projects, security systems, and any application requiring motion detection with low-power requirements and simple integration.
Need larger quantities? Need additional quantities? Get in touch and we'll arrange it for you.
- Dispatched within 0-2 business days
- Delivery to United States: 3-5 business days*
- Free Shipping Included
- IoT motion detection systems
- Security and surveillance applications
- Smart home automation
- Low-power monitoring devices
- PIR Sensor: Panasonic EKM-series
- MCU: ATTiny84 (reprogrammable)
- Standby Current: 170μA
- Detection Range: 5 metres
- Detection Area: 90°x90° (±45°)
- Interface: I2C via Qwiic
- Default I2C Address: 0x12 (0x13 selectable via solder jumper)
- Lens Dimensions: 10.9mm (H) x 10.4mm (Diameter)
