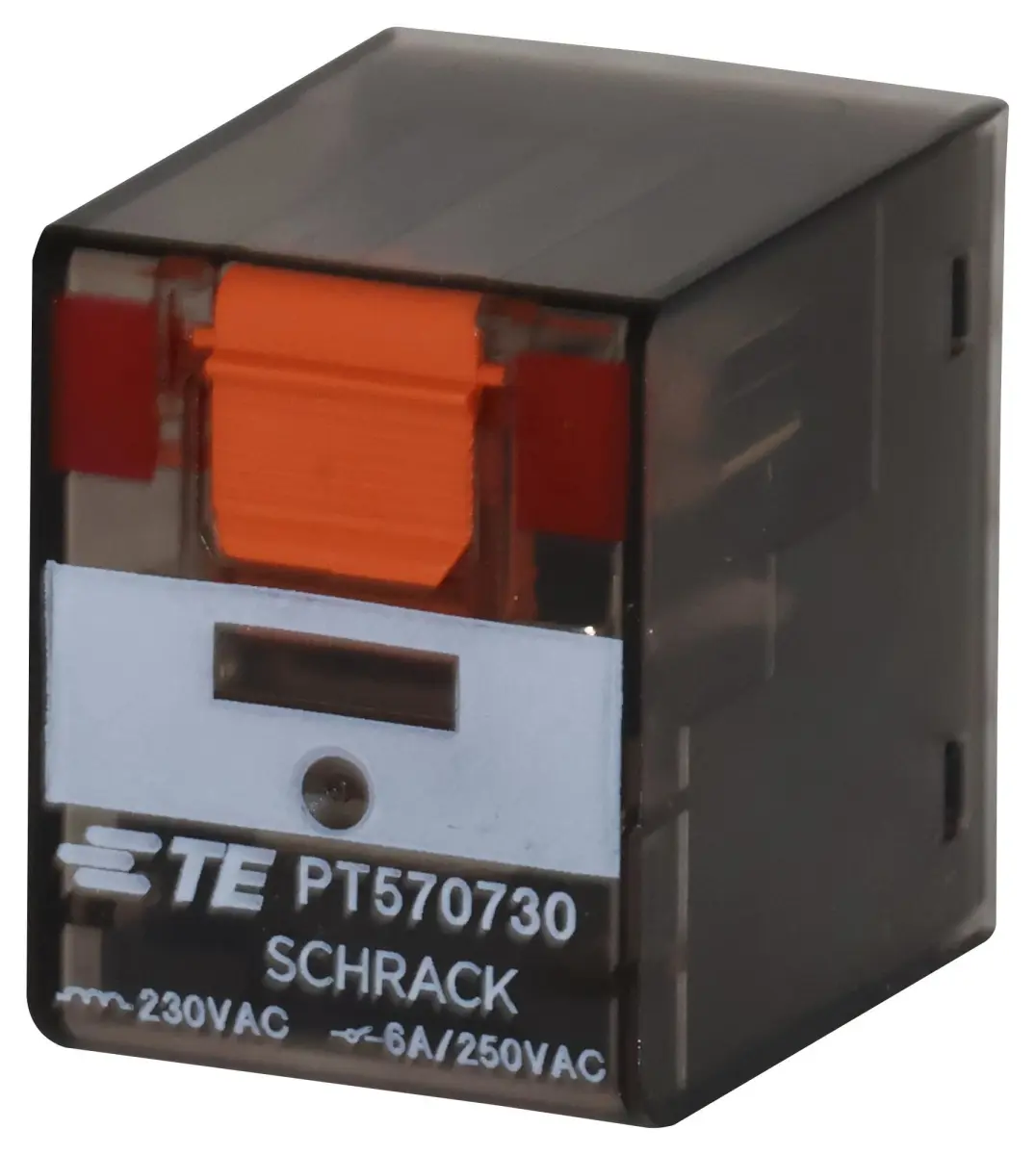

TE Connectivity Schrack Plug-In Relay, 4PDT - 230V

The TE Connectivity Schrack PT series relay is a high-performance miniature industrial relay designed for general-purpose applications in control and automation systems. This robust plug-in relay is engineered to deliver reliable switching in a compact footprint, making it suitable for demanding industrial environments. Its 4PDT (Four-Pole Double-Throw) contact configuration provides versatile control over multiple circuits from a single device, enhancing system design flexibility and reducing component count.

Featuring an AC coil, this relay offers smooth operation and consistent performance in alternating current circuits. It boasts a substantial switching capacity of 6A at 250VAC, enabling it to handle a wide range of loads commonly found in industrial controls, power management systems, and process automation. The unit includes a manual test tab for functional verification, which can be optionally locked to prevent unauthorised or accidental operation, adding an extra layer of safety and control in critical installations.

Constructed to meet stringent international safety standards, the relay complies with both VDE and UL approvals, ensuring high levels of reliability and safety for global applications. Its compact design, combined with quick-connect terminals, allows for rapid and secure installation into compatible sockets, streamlining maintenance and panel assembly. The silver contact material ensures low electrical resistance and excellent conductivity for long-term, dependable performance.

Ideal for integration into a diverse array of systems, this relay is a cornerstone component for engineers and technicians seeking a proven, dependable solution for circuit control.

Key Specifications:

• Contact Configuration: 4PDT (Four-Pole Double-Throw)
• Coil Voltage: 24V AC
• Contact Current Rating: 6A
• Contact Voltage (AC): 240V
• Switching Capacity: 6A at

Variant Details

• Size: 230V
