WINSTAR LCD Graphic Display Module, STN Negative, Transmissive - 122x32

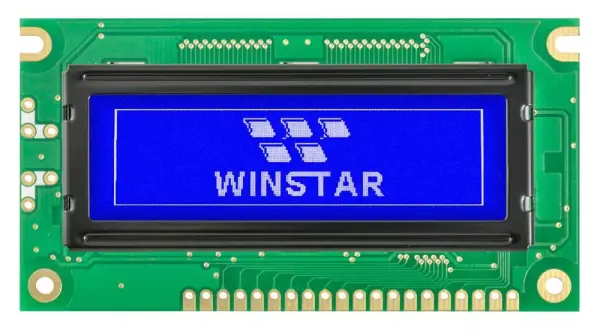

The WINSTAR LCD Graphic Display Module is a high-precision monochrome display designed for a wide range of electronic and embedded applications. Featuring a super-twisted nematic (STN) negative, transmissive panel with a sharp blue/white appearance, it delivers excellent contrast and readability. This module is engineered for reliable performance in diverse environments, making it a versatile component for prototypes, industrial controls, instrumentation, and consumer electronics.

At the heart of the module is the built-in Avant SBN1661G controller, which simplifies integration by handling display memory and timing. The module operates on a standard 5V DC power supply and utilises a 6800 parallel interface for efficient communication with microcontrollers and microprocessors. With a 1/32 duty cycle, it ensures stable and flicker-free operation.

The display offers a resolution of 122 x 32 pixels, providing ample space for text, symbols, and basic graphics. Its comprehensive font set includes English, Euro, and Japanese characters, supporting international product development. The viewing area is clearly defined, with an active area perfectly suited for detailed information presentation.

Constructed as a complete module, it includes a white LED backlight for uniform illumination, ensuring visibility in low-light conditions. Its robust design allows operation across an extensive temperature range from -20°C to +70°C, guaranteeing functionality in both demanding industrial settings and standard commercial applications. The compact form factor makes it easy to integrate into space-constrained designs without compromising on display quality.

This display module is an ideal solution for developers and engineers seeking a dependable, ready-to-use graphic LCD with professional-grade specifications and straightforward connectivity.

Variant Details

• Size: 122x32
