0.96 inch OLED Graphic Display Module, Yellow on Black, I2C/SPI, MIDAS

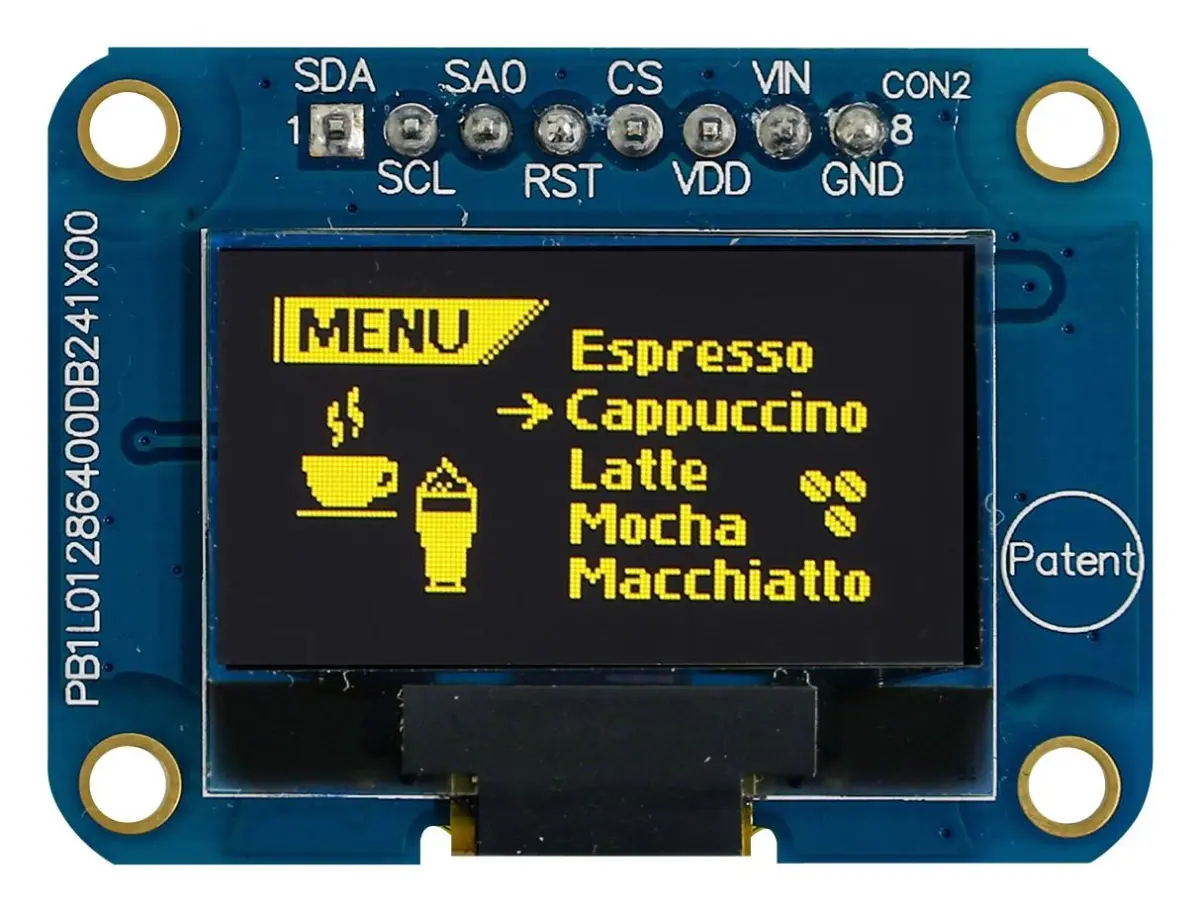

The MIDAS DISPLAYS OLED Graphic Display Module delivers crisp, high-contrast visuals in a compact 0.96-inch package. Featuring a 128 x 64 yellow on black passive matrix display, this module is ideal for projects requiring clear monochrome graphics and text.

Engineered for flexibility, it supports both I2C and SPI interfaces, allowing easy integration with microcontrollers and development boards. The built-in SSD1306BZ controller ensures smooth operation and simplifies software development. With a logic voltage of 3V or 5V, it fits a wide range of logic levels.

The module measures just 38mm x 28.5mm with an active area of 21.74mm x 10.86mm, making it suitable for space-constrained applications. It operates reliably over a broad temperature range from -40°C to 80°C, suitable for demanding environments. The COB (chip-on-board) construction ensures durability and stable performance.

Key Specifications

• Display Size: 0.96 inches
• Resolution: 128 x 64 pixels
• Colour: Yellow on Black
• Interface: I2C, optional SPI
• Controller: SSD1306BZ
• Module Dimensions: 38mm x 28.5mm x 2.37mm
• Active Area: 21.74mm x 10.86mm
• Logic Voltage: 3V / 5V
• Operating Temperature: -40°C to 80°C

Ideal for custom displays, instrumentation, and embedded projects, this OLED module offers reliable performance and clear readability in a compact form factor.
