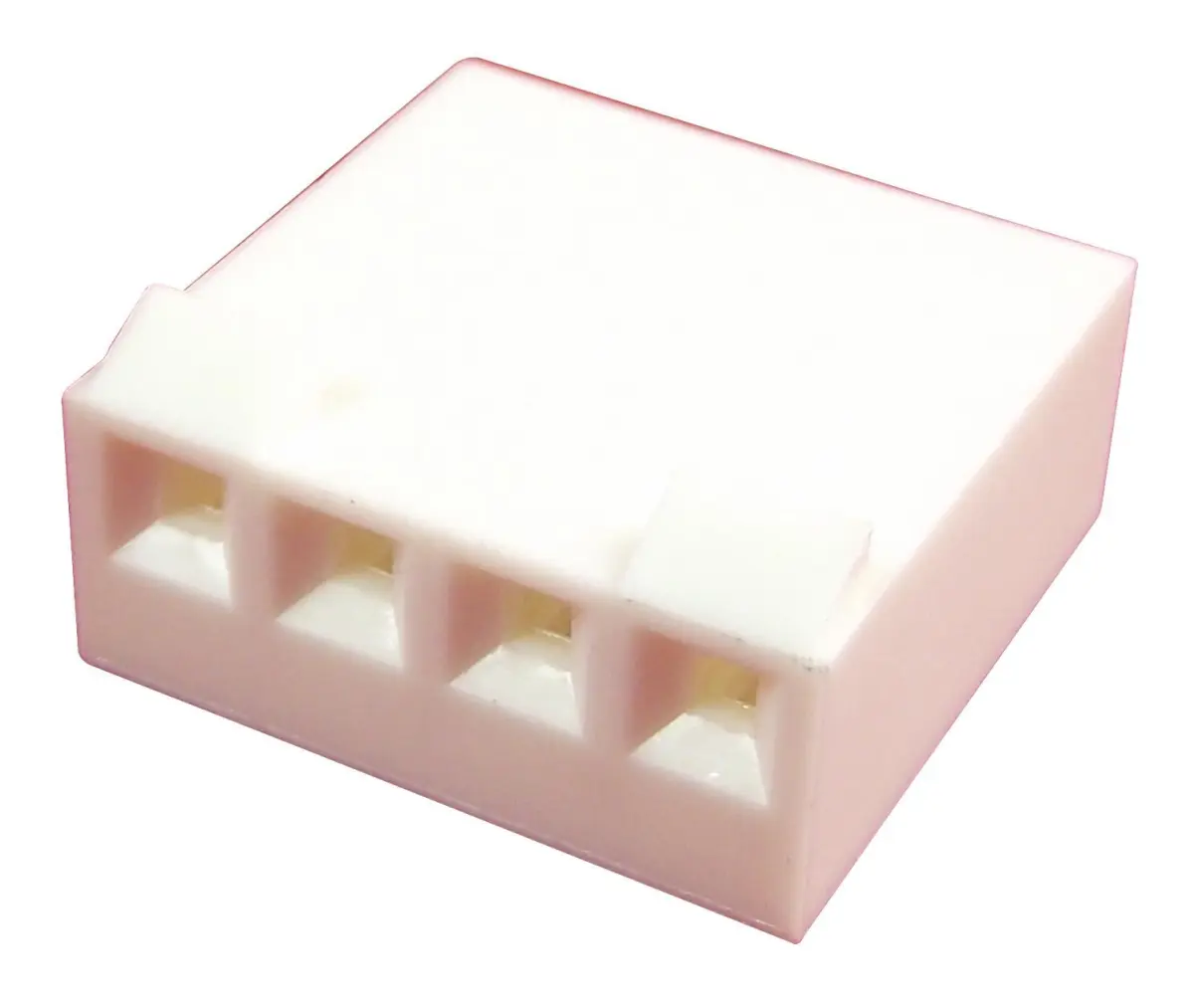

4 Way Crimp Terminal Receptacle, Friction Ramp, Natural, 3.96mm Pitch

The KK 396 Connector System is ideal for board-to-board and wire-to-board applications, delivering reliable performance with up to 7A and 600V per circuit in an industry-standard 3.96mm pitch. This 4 Way Crimp Terminal Receptacle features a friction ramp design and comes in a natural colour, ensuring both secure mating and easy identification.

Engineered for robust connectivity, the system incorporates a three-point contact with dual cantilever terminals for a stable electrical connection. Additional design features include polarising header backwalls and polarising ribs on the receptacles to prevent mismating, alongside PCB retention pegs on headers for secure placement during soldering. The friction-lock mechanism further enhances the connection stability, while the KK RPC headers are constructed from high-temperature nylon with reflow matte-tin plating for durability during the manufacturing process.

Key Specifications

• Product Range: KK 396 Friction Ramp Series
• Gender: Receptacle
• Number of Positions: 4 Ways
• Pitch Spacing: 3.96mm
• Dimensions: 33mm (H) x 22mm (W) x 2mm (D)
• Weight: 1.588 grams

This connector system is designed for use with compatible crimp terminals, offering a versatile and secure solution for various electronic and industrial applications.
