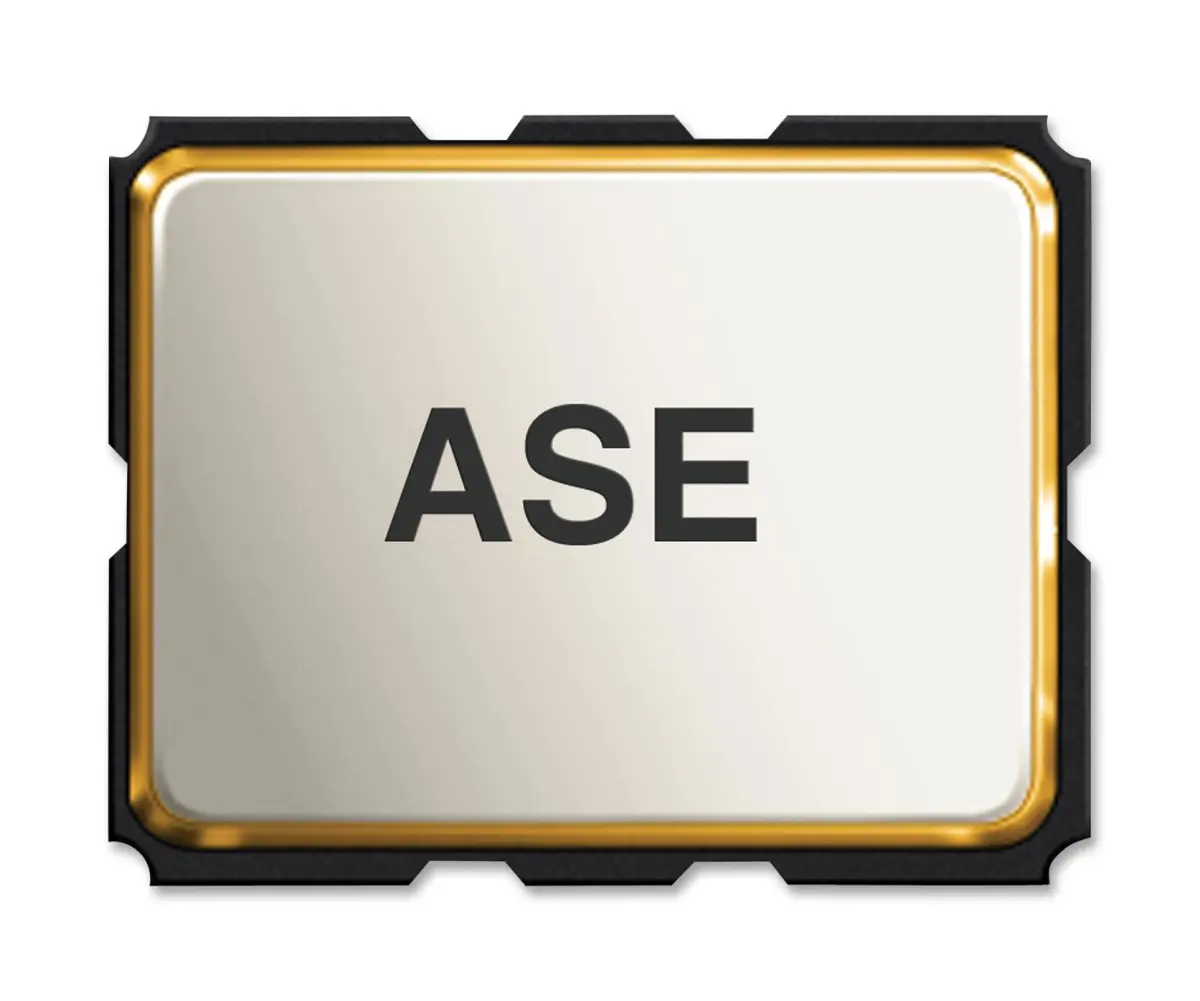

Abracon ASE SMD Crystal Oscillator, 24MHz, 3.3V, 3.2x2.5mm

The Abracon ASE SMD Crystal Oscillator is a high-precision, low-profile timing component engineered for modern, space-constrained electronic designs. Operating at a nominal frequency of 24MHz with an LVCMOS output, it delivers stable and reliable clock signals essential for digital logic and microprocessor circuits.

Housed in a compact surface-mount package measuring just 3.2mm x 2.5mm, it is ideal for applications where board real estate is at a premium. Its robust construction ensures a frequency stability of ±50ppm, maintaining accurate timing across a wide operating temperature range from -40°C to 85°C. This makes it suitable for use in demanding environments, from industrial controls to portable consumer electronics.

With a nominal supply voltage of 3.3V, it is perfectly matched for integration into low-power digital systems, helping to manage overall power consumption. The oscillator is part of the reliable Abracon ASE product range, known for quality and consistency in frequency control solutions.

Key Specifications

• Frequency: 24MHz Nominal
• Stability: ±50ppm
• Package: SMD (Surface Mount Device)
• Dimensions: 3.2mm x 2.5mm
• Supply Voltage: 3.3V Nominal
• Output Type: LVCMOS
• Temperature Range: -40°C to +85°C
• Product Series: ASE
