AMPHENOL RF Coaxial BNC Right Angle Jack, 75 Ohm
AMPHENOL 75 Ohm BNC right angle PCB jack with gold-plated contacts. Ideal for RF communications, supports up to 2GHz.

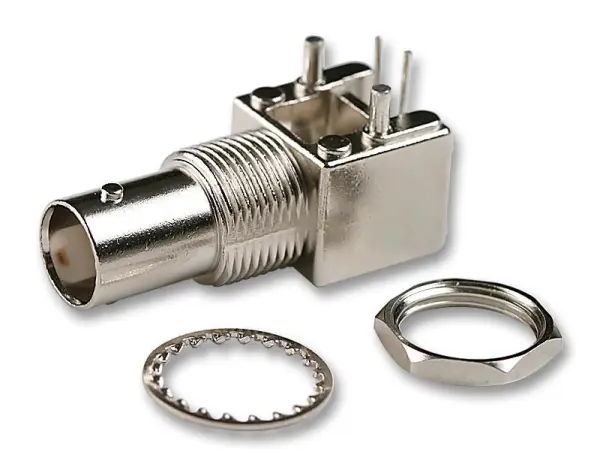

The AMPHENOL RF Coaxial BNC Right Angle Jack is a miniature quick connect/disconnect RF connector designed for reliable performance. Featuring a low-profile right-angle design, this connector is ideally suited for through-hole right-angle PCB mounting, providing a secure and space-efficient connection for your electronic assemblies.
Constructed with durability and signal integrity in mind, the connector boasts gold-plated phosphor bronze contacts that ensure excellent conductivity and corrosion resistance. The body is nickel-plated for robust protection, while the polypropylene insulator provides reliable electrical isolation. A nickel-plated annealed copper crimp ferrule guarantees a solid termination.
This 75Ω connector supports a maximum frequency of 2GHz and operates at a working voltage of 500V RMS, with a dielectric withstanding voltage of 1500V RMS. It is ideally suited for use with RG-179 and RG-316 coaxial cables. Supplied complete with a lock nut and washer, installation is straightforward and secure.
Key Features and Specifications
- Connector Type: BNC Coaxial
- Connector Body Style: Right Angle Jack
- Impedance: 75 Ohm
- Termination: Through Hole Right Angle
- Contact Material: Phosphor Bronze with Gold Plating
- Frequency Max: 2GHz
- Mounting: PCB Mount
- Working Voltage: 500V RMS
- Dielectric Withstanding Voltage: 1500V RMS
- Supplied with lock nut and washer
With its high-quality construction and precise specifications, this AMPHENOL BNC connector delivers dependable performance for your RF communication needs.
