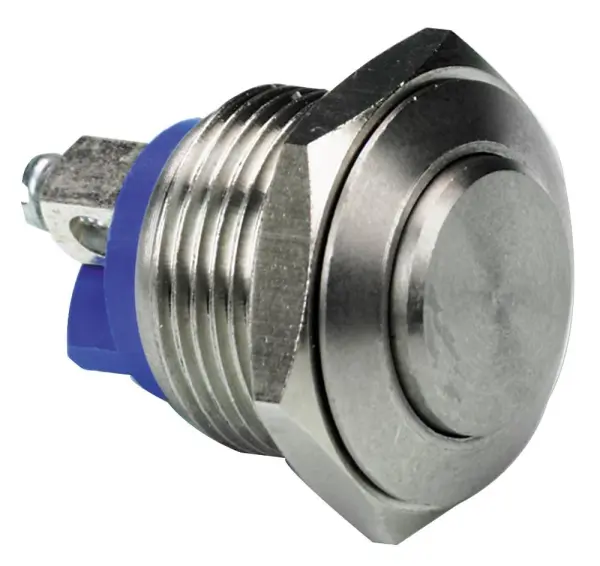

APEM AV Series Momentary Pushbutton Security Switch, IP54

The APEM AV Series Anti-vandal Pushbutton Switch is a robust and durable momentary switch designed for secure applications where reliability and resistance to tampering are critical. Its innovative anti-jamming construction features reduced travel to prevent the insertion of foreign parts, ensuring consistent operation in demanding environments.

Crafted for long life, the switch offers an irremovable contact and mechanism that is protected against crushing. It is also fire resistant, adding an extra layer of safety. The standard version boasts an IP54 protection rating, making it resistant to dust and water splashes, while a sealed version is available with a higher IP65 rating for more challenging conditions.

With a SPST-NO (Single Pole, Single Throw, Normally Open) contact configuration and a momentary Off-(On) operation, this switch is ideal for control and signalling circuits. It features a natural-coloured, round domed actuator for a professional appearance and screw terminals for a secure electrical connection. The attractive yet tough design makes it suitable for a wide range of industrial control panels and security systems.

Key Specifications

• Contact Rating: Max. 200mA DC / 48V DC.
• Mounting: Panel mount.
• Actuator: Round, domed pushbutton in a natural finish.
• Protection: IP54 (standard), IP65 (sealed version available).
• Illumination: Non-illuminated.
• Dimensions: Height 43mm, Width 33mm, Depth 15mm.
• Weight: 15 grams.

This switch is part of a large family of security pushbuttons, offering a reliable solution for applications requiring vandal-resistant hardware and dependable performance over an extended lifespan.
