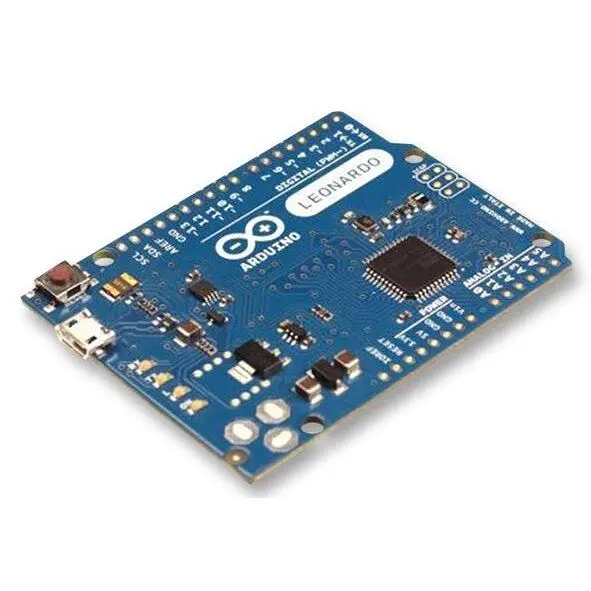

Arduino Leonardo Microcontroller Board A000052

The Arduino Leonardo A000052 is a powerful microcontroller board designed around the advanced ATmega32U4 chip. This board stands apart from its predecessors by integrating native USB communication directly into its main microcontroller, eliminating the need for a separate secondary processor. This innovative architecture allows the Leonardo to be recognised by a connected computer not only as a virtual serial port but also as a generic keyboard and mouse, opening up a vast array of creative project possibilities for direct human interface device (HID) control.

Fully equipped to support the microcontroller, the board includes 20 digital input/output pins, with 7 capable of PWM (Pulse Width Modulation) output and 12 configurable as analog inputs. It is driven by a precise 16 MHz crystal oscillator and features a convenient micro USB connection for both programming and power, a DC power jack, an ICSP (In-Circuit Serial Programming) header, and a reset button. Getting started is straightforward: simply connect it to a computer with a standard USB cable, or power it independently using an AC-to-DC adapter or battery.

The board offers flexible power options, operating reliably on an external supply voltage ranging from 6V to 20V. A built-in LED connected to digital pin 13 provides a handy visual indicator for debugging and basic output. For user protection, the design includes USB over-current protection. With compact dimensions, the Leonardo PCB is an ideal choice for space-constrained projects.

Key Applications

This versatile board is perfectly suited for a wide range of electronics projects, including:

• Automation and process control systems
• Industrial monitoring and control
• Sensing and instrumentation
• Metering devices
• Consumer electronics prototypes
• Interactive art installations
• Custom input device creation (keyboards, mice, game controllers)
