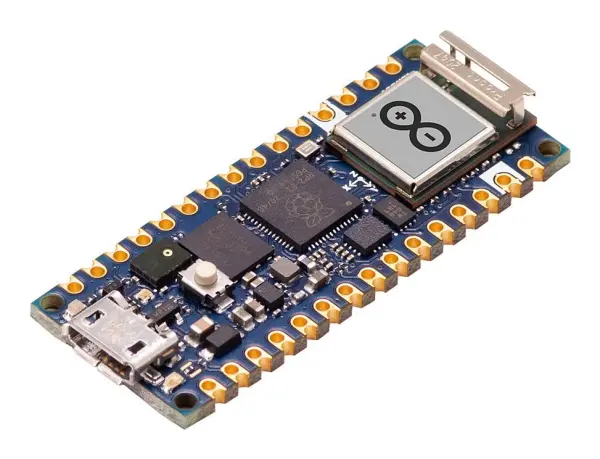

Arduino Nano RP2040 Connect No Headers Dev Board

The Arduino Nano RP2040 Connect is a powerful development board that combines the Raspberry Pi RP2040 microcontroller with a rich set of onboard sensors and wireless connectivity, all in the compact and familiar Nano form factor. This version comes without soldered header pins, making it ideal for projects where you prefer to solder your own connectors or integrate the board directly into your design.

At its heart is the dual-core ARM Cortex-M0+ RP2040 chip, clocked at 133MHz, offering ample processing power for complex tasks. The board is equipped with 16MB of flash memory and 264kB of SRAM, providing plenty of space for your code and data. Connectivity is handled by the U-Blox Nina module, which supports both Wi-Fi and Bluetooth wireless communication, allowing you to connect to the internet, control devices remotely, or communicate with other Bluetooth-enabled devices.

The board also features a 6-axis IMU (Inertial Measurement Unit) for motion and orientation sensing, a microphone for audio input, and an RGB LED for visual feedback. With a wide range of interfaces including USB, SPI, I2C, I2S, UART, and PWM, this board can interface with virtually any sensor or actuator. It provides 20 PWM pins, 8 analogue pins, and 22 digital pins for flexible I/O.

Power is supplied via the MicroUSB connector, which also serves as the connection for programming and serial communication. The board retains the standard Nano series dimensions of 45 x 18mm, making it a drop-in replacement for existing Nano projects. Whether you're prototyping IoT devices, wearable technology, or interactive art, the Arduino Nano RP2040 Connect provides a versatile and powerful platform for your next project.
