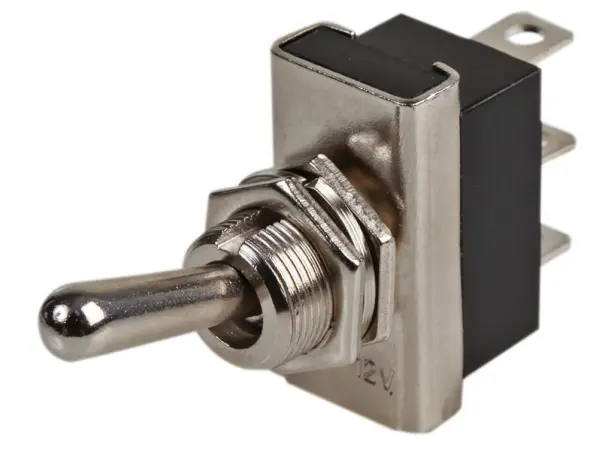

Auto Bar 402M Metal Toggle Switch, On-Off-On, 12V DC 25A

The Auto Bar 402M is a robust, panel-mounted toggle switch designed for reliable control in demanding 12V DC electrical applications. Engineered from durable metal, it features a classic three-position On-Off-On operation, providing positive tactile feedback and clear switching functions. With a high current rating of 25 amps at 12V DC, it is perfectly suited for managing demanding loads in automotive, marine, industrial, and recreational vehicle systems.

This switch is designed for easy installation and secure connections. It features push-on quick-connect terminals, which allow for fast, tool-free wiring without the need for soldering, making installations and maintenance quicker and more straightforward. The switch body is compact, allowing it to be fitted into tight spaces on control panels, dashboards, or enclosures.

Constructed for longevity, the metal housing ensures excellent durability and resistance to wear, while the lever provides a solid, confident feel during operation. Its non-illuminated design makes it a versatile choice for a wide array of projects where indicator lighting is not required.

Specifications and Dimensions

The precise dimensions ensure a neat and professional fit. The switch requires a rectangular panel cutout measuring 23mm in length by 15mm in width, with mounting holes for a secure fix. The overall profile is slim, making it an unobtrusive yet highly functional component for any control setup.
