BATRONIX PLCC32-DIP32 PRO Adaptor, 93g

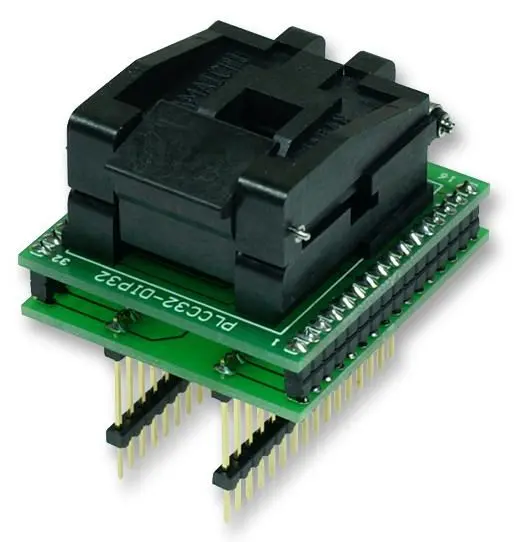

The BATRONIX PLCC32-DIP32 PRO Adaptor is a precision 1:1 interface converter designed to bridge the gap between two common integrated circuit (IC) package formats. It allows you to programme or test a chip in a 32-pin Plastic Leaded Chip Carrier (PLCC) socket using a device equipped with a standard 32-pin Dual In-line Package (DIP) socket. This essential tool is fully compatible with any chip programmer that supports the target IC, making it an indispensable accessory for electronics development, debugging, and production tasks.

For correct operation, careful alignment is crucial. Always ensure that Pin 1 on the adaptor is correctly matched to Pin 1 on your programming device's socket. When inserting the PLCC chip into the adaptor, align the chip's orientation marking (usually a notch or dot) with the white marking on the adaptor body. This guarantees all electrical connections are mapped correctly, preventing damage to the chip or the programmer.

Key Features & Benefits

• Universal Compatibility: Works with all programmers that support the desired PLCC32 chip, offering great flexibility.
• 1:1 Pin Mapping: Provides a direct and reliable electrical connection from every PLCC pin to its corresponding DIP pin.
• Robust Construction: Built for repeated use in demanding environments, from industrial workbenches to educational labs.
• Clear Orientation Markings: The prominent white marking eliminates guesswork during chip insertion, reducing the risk of errors.

Applications

This adaptor is perfect for a wide range of scenarios where ICs need to be programmed or tested outside of their final PCB. It is commonly used in industrial manufacturing for firmware loading, by hobbyists building and modifying electronic projects, and in educational settings for teaching microcontroller programming and digital electronics.

Physical Specifications
