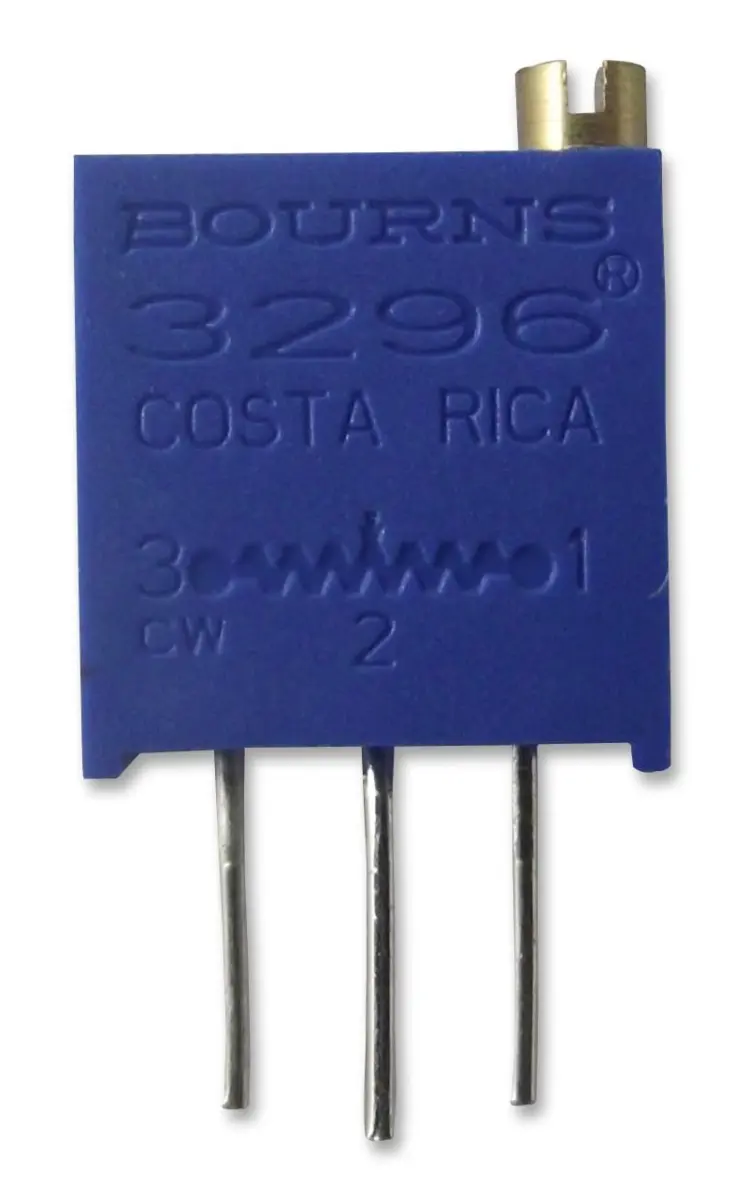

BOURNS 3296 Series 25-Turn 50K Top Adjust Trimmer
BOURNS 3296 Series 25-turn 50k cermet trimming potentiometer. IP65 rated, through-hole mount for precise circuit adjustments.
The BOURNS 3296 Series Trimpot is a high-precision cermet through-hole trimming potentiometer designed for reliable circuit adjustments in a wide range of electronic equipment. Featuring a multi-turn mechanism, this potentiometer allows for exceptionally fine tuning, making it an excellent choice for applications that require highly precise calibration and control.
Engineered for versatility and durability, the 3296 Series boasts an IP65 rating, ensuring robust protection against dust and water ingress in demanding environments. The device offers both side and top adjustment options via a reliable lead screw, accommodating various PCB layout requirements. With a rotational life of 200 cycles across 25 turns, it delivers consistent and repeatable performance throughout its lifespan.
Key Specifications
- Resistance: 50k ohm
- Tolerance: ±10%
- Power Rating: 0.5W (500mW)
- Temperature Coefficient: ±100ppm/°C
- Operating Temperature: -55°C to +150°C
- Size: 3/8 inch square
- Dimensions: 43mm (H) x 33mm (W) x 15mm (D)
- Weight: 0.86 grams
Whether you are measuring linear distance, angle, or rotation in production equipment, the BOURNS 3296 Series provides the accuracy and stability needed for demanding electronic applications. Its chevron seal design and multiple terminal styles further enhance its adaptability for secure through-hole mounting.
