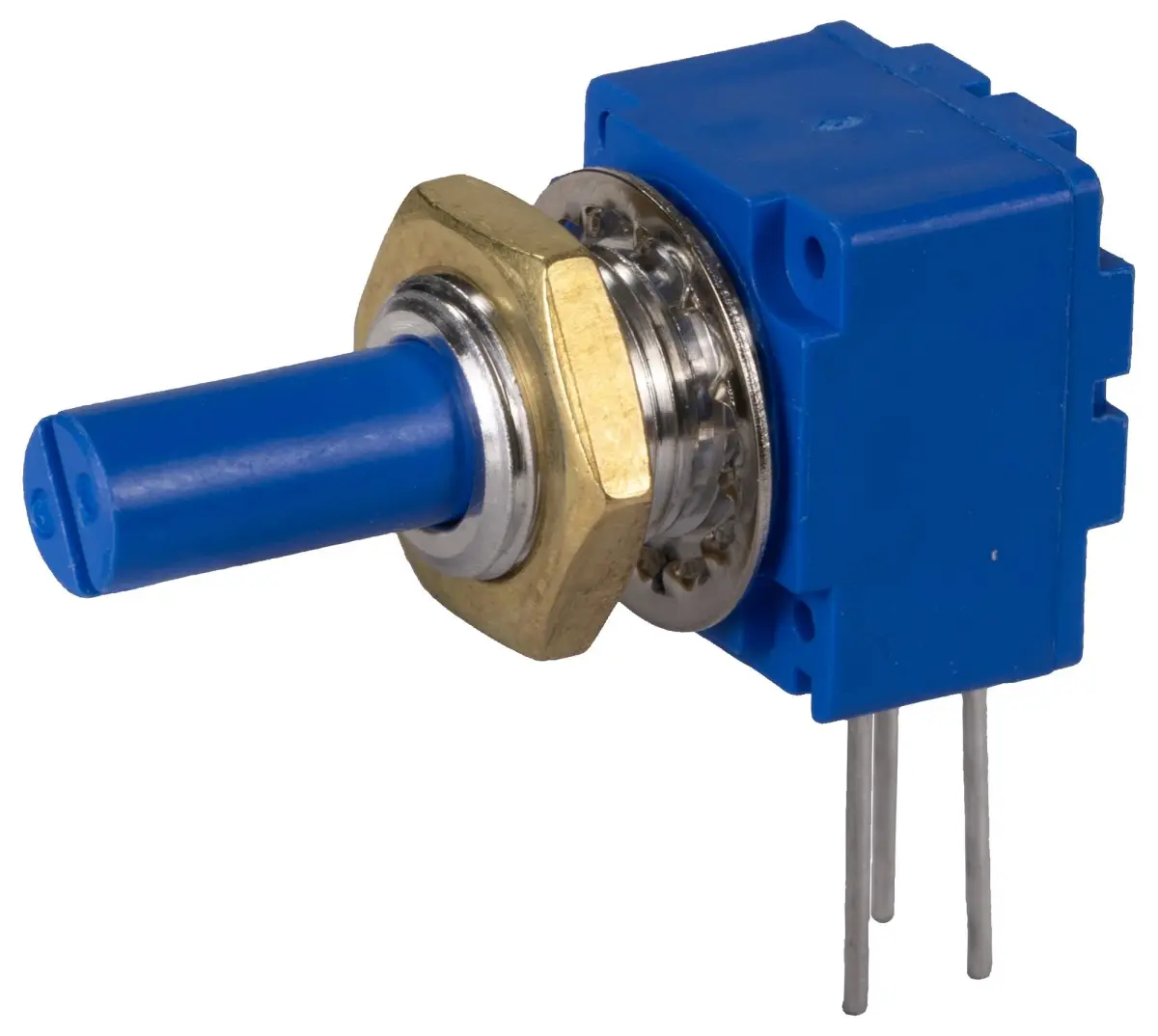

BOURNS Linear Rotary Potentiometer 1K Ohm 2W

This BOURNS Linear Rotary Potentiometer is a 1-gang, panel-mounting component designed for reliable and precise electronic adjustment. Featuring L-pattern PC pins, it ensures secure and straightforward integration into your printed circuit boards.

The single-turn rotary potentiometer incorporates a robust metal plain bushing and a single 0.305-inch R, 90°CW anti-rotating lug to maintain positional stability during operation. It utilises a linear cermet element with a ±10% resistance tolerance, providing essentially infinite theoretical resolution for smooth and accurate control.

Built to withstand demanding environments, this potentiometer boasts an IP40 protection rating and operates effectively across a wide temperature range from -40°C to 125°C. With a power rating of 2W and a temperature coefficient of ±150ppm/°C, it delivers consistent and reliable performance for various electronic applications. The compact dimensions of 43mm in height, 33mm in width, and 15mm in depth make it suitable for installations where space is a consideration.

Key Specifications

• Track Resistance: 1kΩ
• Power Rating: 2W
• Track Taper: Linear
• Resistance Tolerance: ±10%
• Resistor Technology: Cermet
• Temperature Coefficient: ±150ppm/°C
• Operating Temperature Range: -40°C to 125°C
• Protection Rating: IP40
• Weight: 12 grams
