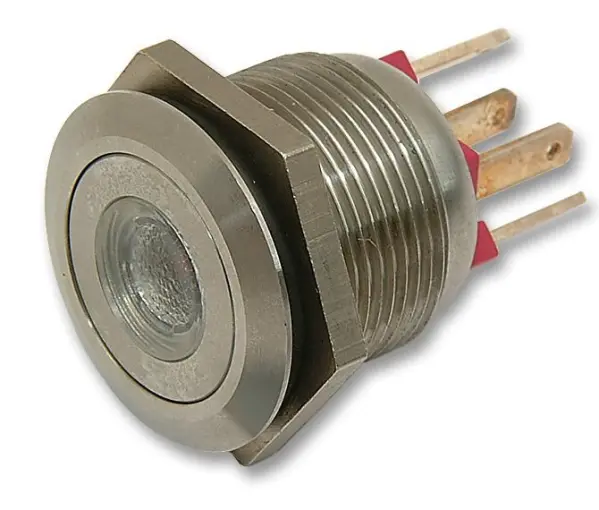

Bulgin MPI001 Series Illuminated Momentary Security Switch, Green, IP66

The Bulgin MPI001 Series is an illuminated, momentary-action security switch engineered from marine-grade stainless steel. Built to withstand demanding conditions, these vandal-resistant switches offer a high degree of resistance to wear and tear, corrosion, and harsh use, making them perfectly suited for access control and other potentially hostile environments.

Designed with a distinctive dot and ring illumination pattern, the front panel is sealed to IP66, ensuring excellent protection against dust and powerful water jets. The switch features a robust, tactile feel with a flush actuator and utilises bright daylight LEDs for clear visibility in all lighting conditions. It is styled to seamlessly match other Bulgin vandal-resistant security components for a cohesive aesthetic.

Key Features & Specifications

• Construction: Durable, marine-grade stainless steel housing.
• Illumination: Green daylight LED with dot and ring pattern.
• Environmental Protection: Front panel sealed to IP66 rating.
• Actuation: Tactile, momentary action (Off-(On)) with a flush actuator style.
• Switch Type: SPST-NO (Single Pole, Single Throw, Normally Open) security switch.
• Electrical Rating: Maximum 50mA at 24V DC.
• Termination Options: Available with screw terminals or 2.8mm quick-connect tabs for flexible installation.
• Mounting: Panel mount design with a 22mm diameter.
• Operating Force: 12N for reliable and deliberate actuation.

This robust switch is an ideal choice for applications requiring dependable operation and high durability in challenging settings.
