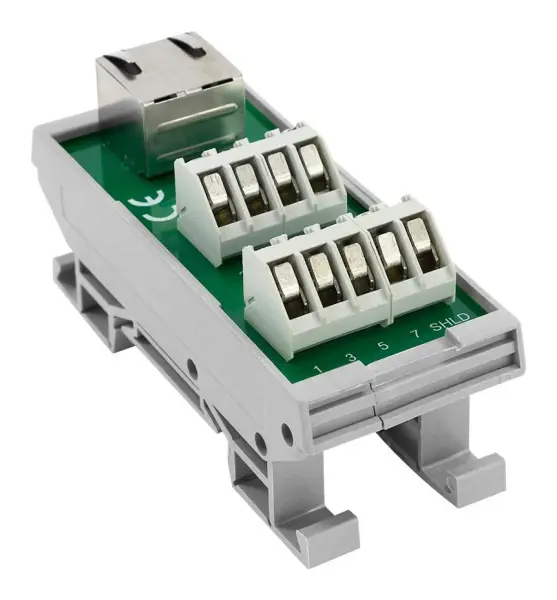

CamdenBoss RJ45 DIN Mount Interface Module, 83x45x34mm

The CamdenBoss RJ45 DIN Mount Interface Module provides a robust and professional solution for converting a single RJ45 (8P8C) socket connection to a secure screw terminal interface. Designed for integration into control panels, network cabinets, and industrial enclosures, this module simplifies wiring and ensures reliable signal transmission for data and low-voltage power applications.

Engineered for durability, the module features a separate shield connection point for effective EMI/RFI suppression, which is essential for maintaining signal integrity in electrically noisy environments. The terminals are clearly numbered 1 to 8, plus shield, for straightforward and error-free wiring, compatible with a wide range of cable sizes from 0.2mm to 4mm (30-12 AWG).

Key Features & Applications

• DIN Rail Mounting: Easily installs onto a standard 35mm DIN rail, saving space and allowing for neat, modular system builds alongside other components like circuit breakers, PLCs, and relays.
• 45° Angled Terminals: The terminals are angled at 45 degrees, providing excellent accessibility for screwdriver connection, even in densely packed enclosures, making installation and maintenance quicker and easier.
• Secure Connections: The screw terminal block ensures a vibration-resistant, gas-tight connection that is far more reliable than push-in or spring-clamp alternatives for permanent installations.
• Technical Specifications: Rated for 125VDC at 500mA, this interface is ideal for a variety of low-voltage control, data communication, and sensor wiring tasks within industrial automation, telecommunications, and building management systems.
