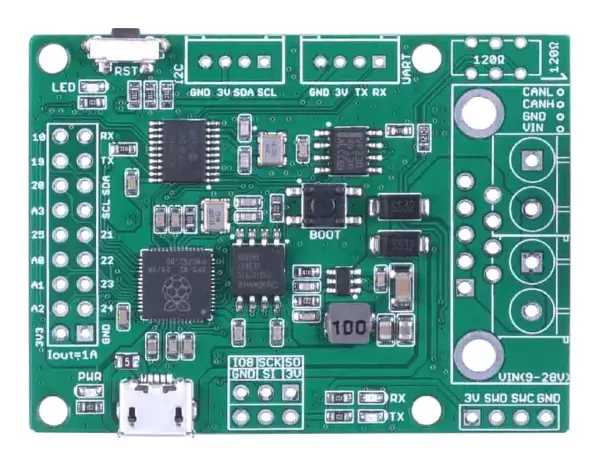

CANBed CAN Bus Development Board RP2040 by Seeed Studio

The CANBed CAN Bus Development Board from Seeed Studio is a powerful and flexible solution for CAN bus projects. Equipped with the high-performance Raspberry Pi RP2040 dual-core ARM Cortex-M0+ processor running at up to 133MHz, this board delivers robust processing power for advanced automotive and industrial applications. The integrated CAN controller and receiver support CAN 2.0B at data rates up to 1Mb/s, ensuring reliable and high-speed communication. The flexible CAN interface can be used either as a 4-pin terminal or via an industrial standard 9-pin sub-D connector, which supports both OBD-II and standard CAN pinouts, selectable through a programmable Micro USB. This board also includes a 2x4 pin connector compatible with the Grove system from Seeed Studio, allowing easy expansion with a wide range of Grove sensors and actuators. The SPI interface enables straightforward integration with other microcontrollers and peripherals. Supporting both standard (11-bit) and extended (29-bit) data and remote frames, this development board is versatile for various CAN protocols. Power input is accepted from 9 to 28V, making it suitable for automotive and industrial power supplies. The kit includes the CANBed 2040 PCBA, D-Sub connector, 4-pin terminal HY2.0 connector, 9x2 and 3x3 2.54 headers, and a switch. With its compact dimensions of 33mm width, 43mm height, and 15mm depth, and a weight of just 20 grams, this board is ideal for embedded systems and prototyping. Whether you are developing for automotive diagnostics, industrial automation, or IoT applications, the CANBed RP2040 offers a reliable and powerful platform for your CAN bus projects.
