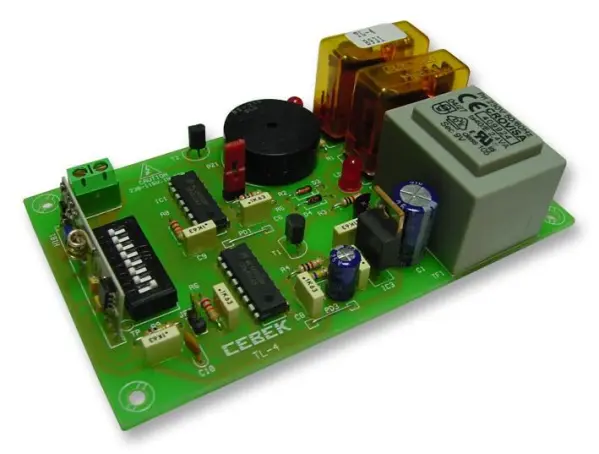

Cebek UK 230V Single Touch 2-Channel Remote Control Receiver Module with Dual 3

The Cebek UK 230V Single Touch 2-Channel Remote Control Receiver Module is a versatile and robust control solution designed for a wide range of automation and remote switching applications. This compact module allows you to wirelessly connect or disconnect two separate electrical circuits from a distance of up to 30 metres using a compatible remote transmitter.

Operating on the standard 433.92MHz frequency, the receiver decodes signals from two transmitters, providing reliable dual-channel control. The standard 'single-touch' function connects the relay outputs for the duration the transmitter button is held down, disconnecting upon release—ideal for momentary operations like activating a gate or light.

Key Features & Configuration

• Dual Relay Outputs: Control two independent 230V AC circuits, each with a maximum load of 3A.
• Integrated Programming: Features in-built micro-switches for easy on-board configuration, allowing you to set the security code, antenna output, and enable or disable the LED and acoustic confirmation signals.
• Compact Design: Its slimline form factor makes it easy to install in confined spaces such as electrical enclosures, behind switch plates, or within machinery housings.

Applications

This receiver module is perfect for adding convenient remote control to various domestic, commercial, and light industrial systems. It can be used to operate lighting circuits, electric motors for gates or blinds, ventilation fans, or as part of a customised security or automation setup.

Technical Specifications

• Power Supply: 230V AC.
• Operating Frequency: 433.92MHz.
• Maximum Load per Channel: 3A.
• Maximum Current Consumption: 100mA.
• Control Range: Up to 30 metres (line of sight).
• Control Function: Momentary (output active while button is pressed).
• **Dimensions
