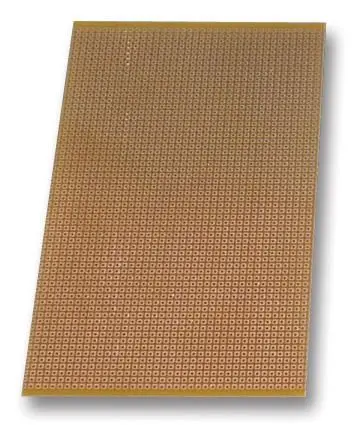

Tinned Copper Clad Pad Single Sided Prototyping Board, 160x200mm

The Cif AGP20 is a single-sided tinned copper clad prototyping board (protoboard) built on an epoxy glass composite base. Designed for reliable and repeated use, it is drilled at a standard 2.54mm pitch, making it compatible with most electronic components, including ICs, resistors, and connectors.

Each board features 2mm square pads, providing a generous soldering area for secure connections. The hole diameter is 1mm, suitable for standard component leads. The entire surface maintains a 0.54mm gap, ensuring clear isolation between tracks and pads to prevent short circuits.

The board measures 160x200mm (HxW), offering ample space for complex circuit layouts. The FR4-rated epoxy glass material ensures high mechanical strength and excellent electrical insulation, making it a durable choice for prototyping, educational projects, and industrial development.

Key Features

• Single-sided pad type prototyping board
• FR4 rated epoxy glass material
• Drilled at 2.54mm pitch for standard components
• Hole diameter: 1mm
• Square pads: 2mm each side
• Board dimensions (HxW): 160x200mm

This prototyping board is ideal for developing and testing electronic circuits in a wide range of applications. Its precise construction and high-quality materials ensure consistent performance, making it a reliable foundation for your projects.
