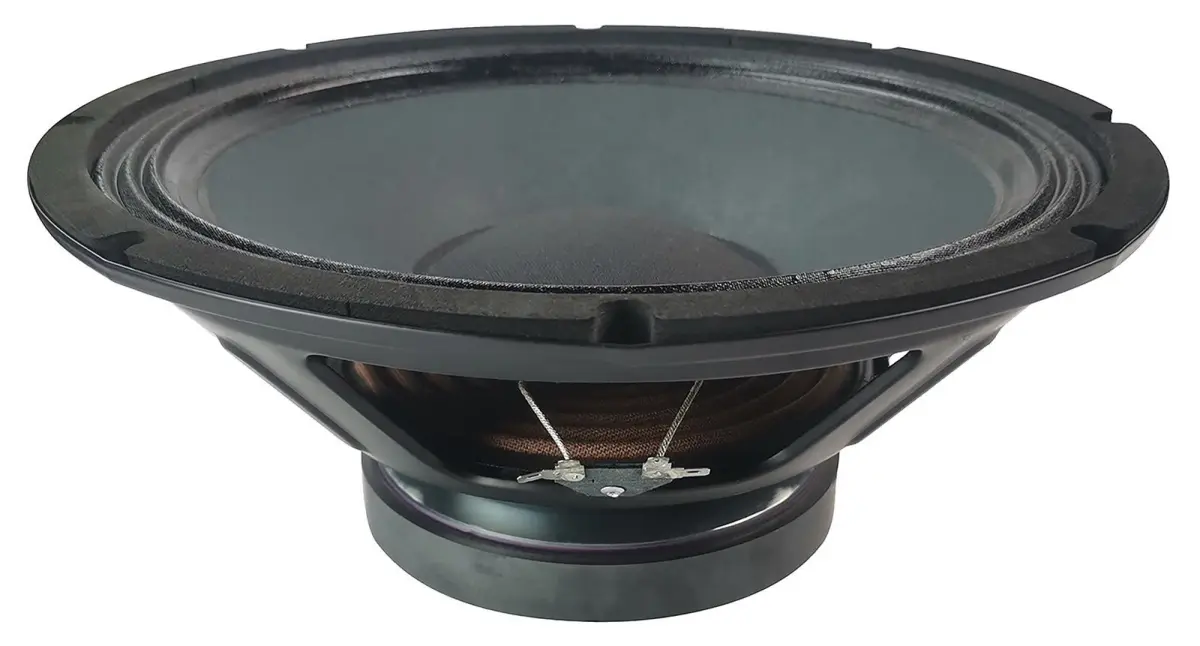

Citronic 10-inch Dual Coaxial Driver, 4 Ohm, 250W RMS

Designed for professional sound reinforcement, the Citronic 10-inch Dual Coaxial Driver is a powerful and robust replacement driver unit. It combines a high-output 10-inch woofer with a 1.75-inch concentric tweeter compression driver in a single, efficient coaxial design. This configuration ensures precise sound reproduction and excellent dispersion, making it ideal for a wide range of audio applications.

Constructed with a durable steel frame and a reinforced paper cone, this driver is built for longevity and reliable performance under demanding conditions. The integrated mesh dust cap protects the critical components while maintaining acoustic integrity. With a nominal impedance of 4Ω, it is perfectly matched for use with Citronic's CM series and other compatible active speaker systems.

Performance Specifications

The driver delivers impressive power handling, with a maximum rating of 500W and an RMS rating of 250W, providing ample headroom for clear, distortion-free audio. Its wide frequency response from 40Hz to 20kHz ensures full-range sound coverage, from deep lows to crisp highs. High sensitivity ratings of 94dB (LF) and 106dB (HF) mean efficient power conversion and high output levels even with moderate amplifier power.

A key feature for live sound is the phase alignment, specifically optimised for foldback (monitor) PA applications. This design provides performers with accurate, focused monitoring. The dual coaxial design simplifies installation and offers a compact solution for upgrading or repairing enclosures, delivering the cohesive sound field characteristic of a true point-source speaker.

Applications

This versatile driver is suited for various professional audio scenarios, including live sound reinforcement, fixed installations in venues, and as a direct replacement in compatible speaker cabinets. Its robust build and high-performance specifications make it a dependable core
