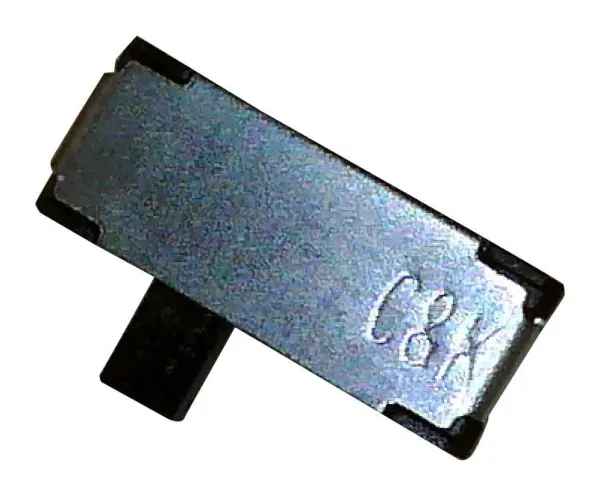

C&K JS Series Subminiature Slide Switch, DPDT, On-On, SMD, Right Angle

The C&K JS Series Subminiature Slide Switch is a compact and reliable switching solution designed for surface mount applications. With a double-pole double-throw (DPDT) contact configuration and an on-on switch operation, this component offers flexible circuit control in a miniature form factor. The switch is rated for a maximum current of 300mA at 6V DC, making it suitable for low-power electronic circuits. Its right-angle orientation allows for efficient PCB layout and space-saving designs.

Manufactured by C&K Components, a trusted name in switch technology, this slide switch is built to deliver consistent performance and durability. The subminiature size makes it ideal for use in compact electronic devices where space is at a premium. The surface mount design simplifies automated assembly, enhancing production efficiency.

Key Features

• DPDT contact configuration for versatile circuit switching
• On-on switch operation for stable state selection
• Surface mount design for easy PCB integration
• Rated at 6V DC, 300mA for low-power applications
• Right angle orientation for flexible layout options
• Compact subminiature size saves valuable board space

Whether you are designing consumer electronics, portable devices, or instrumentation, this slide switch provides a dependable and space-efficient solution for your switching needs.

Specifications

• Contact Configuration: DPDT
• Switch Operation: On-On
• Mounting Type: Surface Mount
• Maximum Contact Current: 300mA
• Maximum Contact Voltage (DC): 6V
• Orientation: Right Angle
• Product Series: JS
• Weight: 1g
