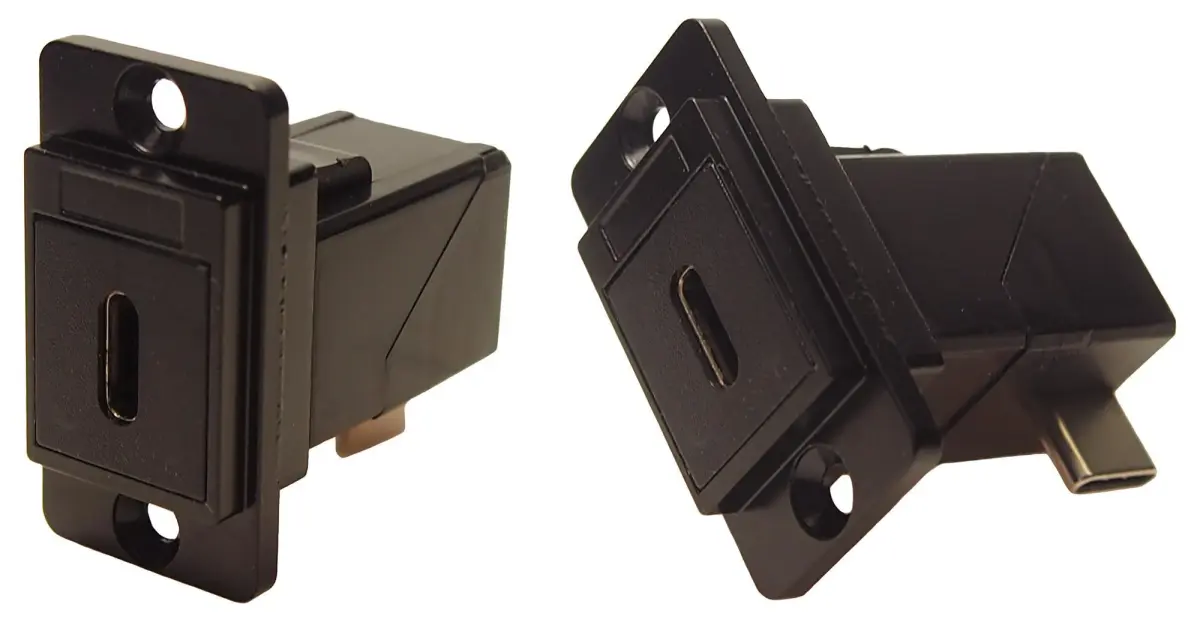

Cliff Dual Slim USB-C Socket to USB-C Right Angle Plug Feedthrough Connector

The Cliff Electronic Dual Slim USB-C Feedthrough Connector is a compact panel connector with a maximum current of 3 A per port.

It provides a USB-C socket on the panel front that connects directly to a USB-C plug on the inside, allowing USB-C charging and data transfer to be integrated into panels and enclosures. The sleek black metal frame includes CSK holes for secure mounting, and the ultra-low rear profile of 2 mm suits applications with tight space behind the panel. The design supports both front and rear mounting for flexible installation.

Key Features

• Fully compatible with USB Power Delivery (PD) 3.1 specifications, supporting fast charging for compatible devices such as modern laptops, tablets and smartphones.
• Maximum current of 3 A per port for reliable power delivery in demanding applications.
• Right-angle (90°) rear cable entry helps route cables neatly and reduces strain, supporting a clean internal layout.
• No soldering or complex punch termination required; a standard cable is used for each port style, allowing quick, tool-free integration.
• Compact external dimensions of 33 mm height and 22 mm width, occupying minimal panel space while providing dual-port functionality.

Applications

The connector is suited to instrument panels, custom computer cases, kiosks and other panel and enclosure projects. It is well suited to product designers, engineers and hobbyists adding USB-C connectivity to custom equipment.

Specifications

• Dimensions: 33 mm height, 22 mm width, 2 mm depth
• Weight: 20 g
• Rear Profile: 2 mm

Choose the Cliff Electronic Dual Slim USB-C Feedthrough Connector when you need a space-efficient way to bring USB-C ports through a panel or enclosure while keeping internal cabling neat and organised.
