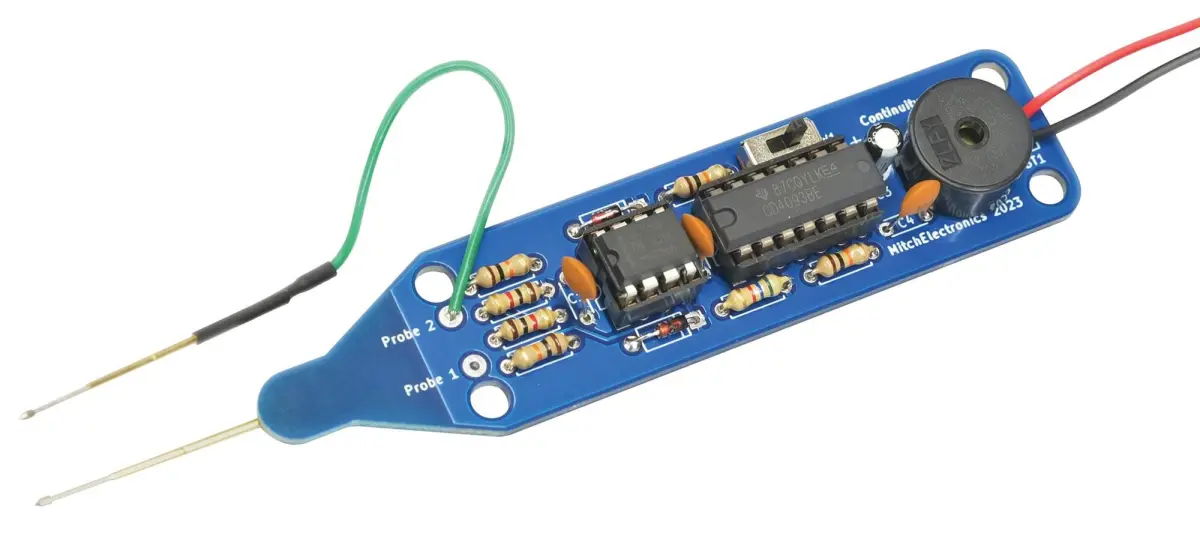

Continuity Probe Project Kit

The Continuity Probe Project Kit (CONTPROBE) provides an engaging and educational introduction to electronics, allowing you to build a simple yet effective DIY tool for testing electrical continuity. It is perfect for hobbyists, students, and educators, offering hands-on experience in circuit assembly and the practical application of fundamental electrical principles.

Once assembled, the probe quickly tests for continuity between two points on a wire or circuit. When continuity is detected, the onboard buzzer provides immediate audible feedback, eliminating the need for a visual display. This makes it an intuitive and user-friendly tool for quick diagnostics.

Key Features & Educational Value

• Designed as a project kit, it is ideal for classroom environments, workshops, or home learning, helping to explain important theories like conductivity, circuit completion, and basic diagnostics.
• The use of spring-loaded pogo-pin contacts minimises the risk of damage to delicate components or PCBs during probing, ensuring safe and reliable use.
• Built-in diode protection safeguards both the probe itself and any external circuits or sensitive devices from potential damage caused by accidental reverse polarity or voltage spikes.
• The printed circuit board (PCB) includes four mounting holes, allowing the probe to be securely housed within a custom enclosure for improved durability and ease of handling.
• Power is supplied by a standard 9V PP3 battery (not included), making it portable and ready for use anywhere.

This kit not only results in a practical diagnostic tool but also serves as an excellent educational resource, fostering understanding of circuit building, soldering, and electronic testing procedures.
