Cool Components 8 LED WS2812 RGB Pre-soldered 32mm Ring

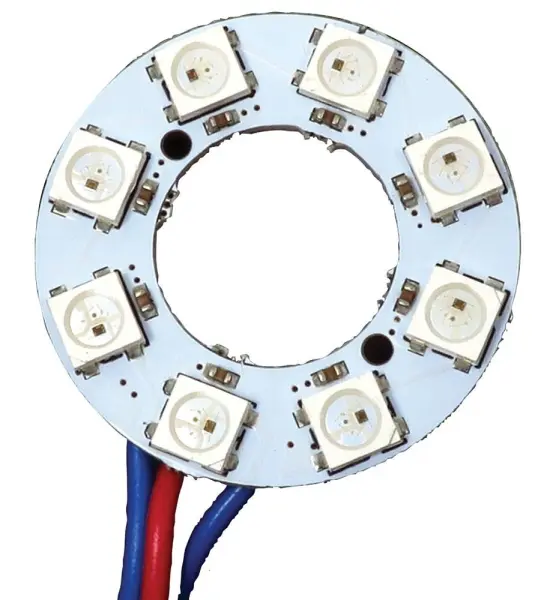

The Cool Components 8 LED WS2812 RGB Pre-soldered Ring is a compact, ready-to-use lighting module perfect for adding vibrant, programmable colour to your projects. This circular PCB ring features eight high-intensity WS2812B 5050 RGB LEDs, each with an integrated driver chip, allowing for individual pixel control from a single data line.

The module arrives with four connections pre-soldered: V+, GND, DATA IN, and DATA OUT. This eliminates the need for delicate soldering work, making it ideal for beginners, rapid prototyping, and projects where a clean finish is desired. The single-wire control protocol is fully compatible with the popular NeoPixel library, simplifying programming for stunning lighting effects, animations, and colour sequences.

A key advantage of this design is its daisy-chaining capability. The DATA OUT connection allows you to link multiple rings or other compatible WS2812 devices in a series, all controlled from a single microcontroller output. This makes it perfect for use with controllers that have a limited number of I/O pins, enabling complex displays without wiring complexity.

Specifications & Features

• LED Type: 8x WS2812B 5050 RGB LEDs with integrated drivers.
• Compatibility: Fully compatible with the Adafruit NeoPixel library and similar frameworks.
• Connections: 4 pre-soldered connection points for power, ground, and data.
• Control: Single-wire data protocol, ideal for daisy-chaining multiple units.
• Supply Voltage: 5V DC.
• Power Consumption: 1W.
• Beam Angle: 140°, providing a wide, diffused light output.
• Dimensions: 32mm outer diameter.
• Recommended Controller: For reliable timing, a real-time microcontroller such as an Arduino or mbed device is recommended.

This versatile ring is an excellent component for creating custom lighting in cosplay, model making, interactive art,
