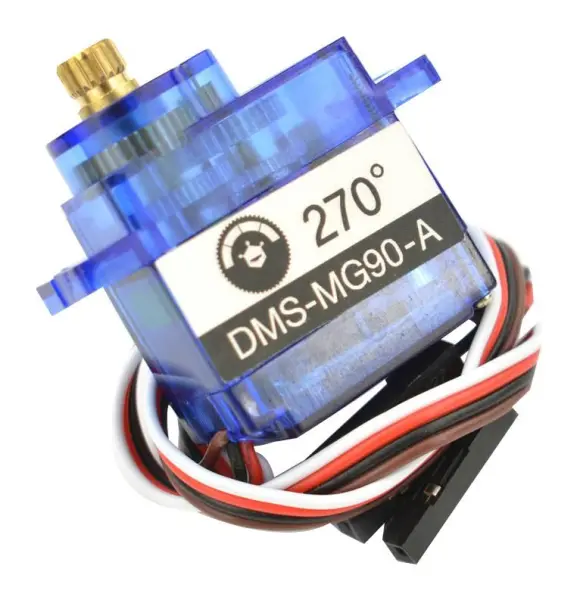

6V Servo Motor, 270 Degree, Metal Gear

The DFROBOT 6V Servo Motor is a compact, high-performance actuator featuring a robust metal gearbox for enhanced durability over plastic alternatives. With a generous rotational angle of 270 degrees, this micro servo offers stable and accurate performance, making it an ideal component for precise control in tight spaces.

Its tiny dimensions of just 22.9mm x 12.2mm x 32.5mm allow for easy integration into micro-robots, model aircraft, and other compact DIY projects. The motor delivers a reliable torque of up to 1.5Kg·cm (1.47N·m), providing ample power for small-scale mechanisms. Designed for flexibility, this servo lacks an internal limit switch, enabling users to manually configure it for continuous 360-degree rotation if required.

Performance Characteristics

• Operating Voltage: 4.8V to 6.0V
• Operating Angle: 270° ±5° (corresponding to a pulse width of 500→2500μsec)
• Neutral Position: 1500μsec pulse width
• Dead Bandwidth: 5μsec
• Maximum Travel: 220° ±10°
• Rotation Direction: Clockwise
• Operating Temperature Range: -10°C to +50°C

This servo's analogue feedback ensures responsive control, while its metal gear construction guarantees a longer operational life, even under frequent use. It is a dependable choice for makers, hobbyists, and professionals developing advanced robotics and automation projects.
