Dialight 3mm CBI® Green PCB LED Indicator, 2 LEDs, Through Hole, 12.6 mcd

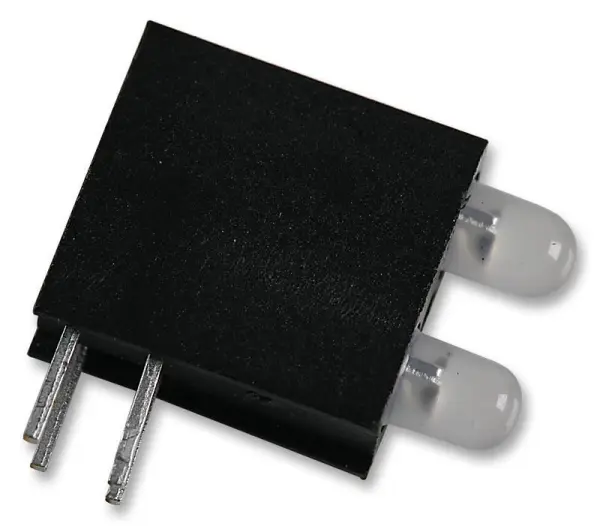

The Dialight 3mm CBI® Green PCB LED Indicator is a high-reliability component designed for demanding electronic applications. Featuring two distinct green LEDs housed within a high-contrast black enclosure, it provides clear and effective status indication.

The housing is engineered with a 32% oxygen index and complies with the UL94V-0 flammability rating, ensuring excellent resistance to ignition and fire propagation. This makes it suitable for environments where safety and material integrity are paramount. Built-in housing stand-offs facilitate thorough post-assembly PCB cleaning, preventing flux contamination and ensuring long-term reliability.

The LEDs emit a pure green light with a peak wavelength of 565nm and a luminous intensity of 12.6 millicandelas (mcd). With a forward current of 10mA and a forward voltage of 2.1V, it offers efficient performance. The through-hole mounting design and a 60-degree viewing angle ensure easy integration and excellent visibility from a wide range.

Manufactured to exacting standards, the indicator's solderability meets MIL-STD-202F, method 208F requirements, guaranteeing robust electrical and mechanical connections. Its compact dimensions allow for efficient use of board space without compromising on performance or durability.

Ideal for critical applications where failure is not an option, this indicator combines technical precision with rugged construction for dependable service.
