P-Channel Power MOSFET, 30V, 12A, PowerDI3333

The DMP3013SFV-7 is a P-channel enhancement mode MOSFET engineered for high-efficiency power management. It achieves an excellent balance by minimising the on-state resistance (RDS(ON)) while maintaining superior switching performance, leading to reduced power losses and improved overall system efficiency.

With a continuous drain current of -12A and a drain-source voltage of -30V, this MOSFET is capable of handling significant power in a compact form factor. The exceptionally low maximum static drain-source on-resistance of 9.5mΩ helps to minimise conductive losses when the device is fully switched on.

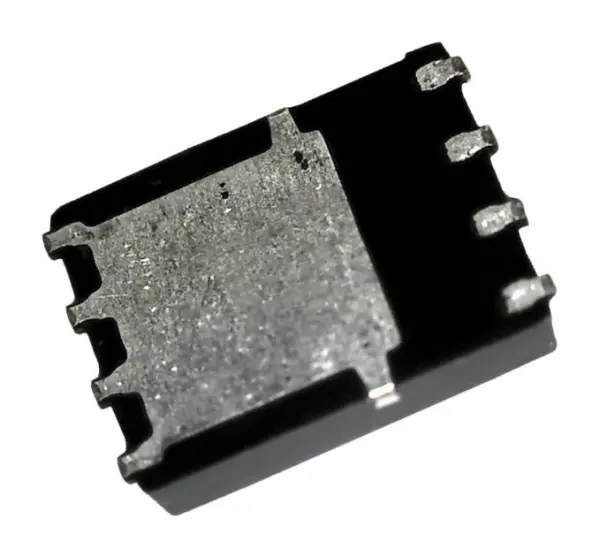

Housed in the thermally efficient PowerDI3333-8 surface-mount package, this component enables higher-density PCB designs without compromising thermal performance. Its robust construction supports an operating and storage temperature range from -55°C to +150°C, ensuring reliability across demanding environments.

Key Features & Specifications:

• Channel Type: P-Channel Enhancement Mode
• Drain-Source Voltage (Vds): -30V
• Continuous Drain Current (Id): -12A (at VGS = -10V)
• Pulsed Drain Current: -80A (380µs pulse)
• Max On-State Resistance (RDS(ON)): 9.5mΩ (at VGS = -10V, ID = -11.5A)
• Gate-Source Voltage (Vgs): ±25V
• Total Power Dissipation: 0.94W
• Package: PowerDI3333-8 (Type UX), Surface Mount
• Pin Count: 8 Pins
• Operating Temperature Range: -55°C to +150°C
• Dimensions (Package): 3.3mm (Width) x 4.3mm (Height) x 1.5mm (Depth)

This MOSFET is supplied in a moisture-sensitive level (MSL) 1 package, allowing for unlimited floor life at factory conditions prior to use.
