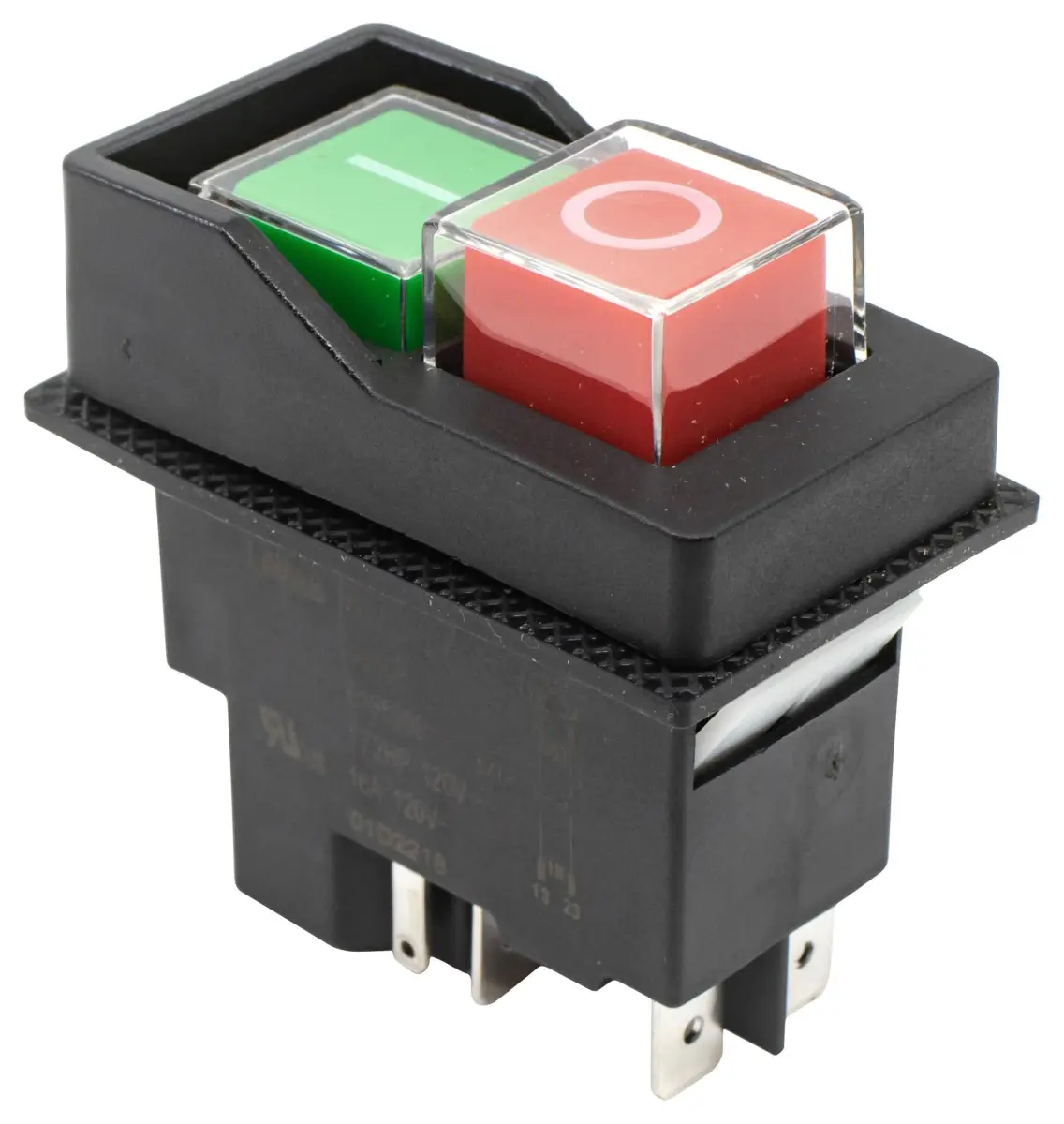

E-Switch KJD17 Industrial Push Button Switch DPST Off-On 16A 120V AC

E-Switch KJD17 Industrial Push Button Switch is a DPST panel-mount push button switch rated at 16A at 120V AC, designed for demanding industrial environments. Its guarded off-on actuation and remote trip capability support safe, controlled operation of machinery and equipment.

Overview

The switch has a Polyamide 6/6 body and actuator for long-lasting performance and resistance to wear. Its built-in electromagnet provides automatic protection against power outages and prevents unintended restarts, making it a reliable safety component for machinery and equipment.

Key Features

• DPST contact configuration with a rating of 16A at 120V AC
• Silver alloy contacts and silver-plated brass terminals for electrical conductivity and durability
• UL-listed with a 2HP electrical rating, confirming suitability for motor control
• Square, guarded actuator with off-on function and remote trip capability
• Red/green actuator with black bezel for clear visual indication
• PVC cover and rubber gasket for added protection
• IP54 rating for protection against dust and moisture
• Quick-connect terminals for simple wiring

Installation

The switch is designed for easy panel mounting with a panel cutout of 46 mm x 22 mm. It operates reliably across a temperature range of -25°C to 55°C.

Applications

Suitable for a variety of industrial control applications, including machinery and equipment and motor control. Choose the E-Switch KJD17 Industrial Push Button Switch for panel-mounted industrial control where a guarded, DPST push button switch with a 16A rating is required.
