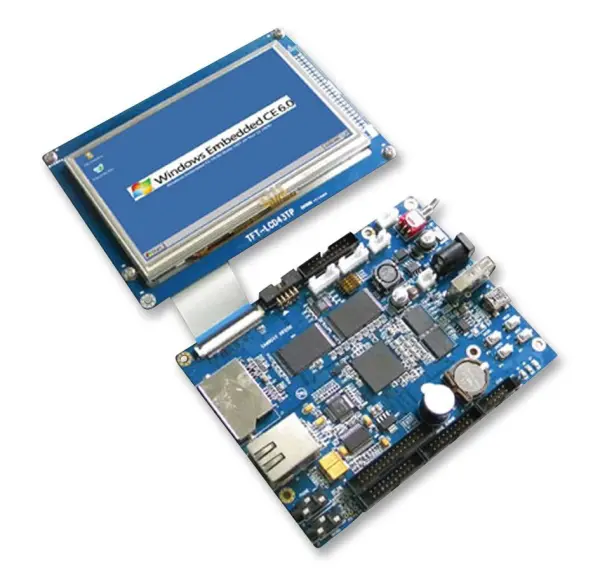

Embest SAM9G45 Microcontroller Evaluation Board with 4.3 Inch LCD Display
- SKU
- C3-SC13178
- EAN
- 3562074172092
Embest SAM9G45 evaluation board with 4.3-inch QVGA TFT LCD, 400MHz AT91SAM9G45 processor and Linux 2.6 and Windows CE 6.0 support.
This item is currently out of stock...
This item is currently out of stock, but you can opt in to be notified when it's back in stock.
Need larger quantities? Need additional quantities? Get in touch and we'll arrange it for you.
- Tracked deliveryOrder by 13:58 UK time on a working day for same-day dispatch
- Returns acceptedUnused, in original packaging
- Secure checkoutCard, PayPal, Apple Pay, Google Pay
Technical Specifications
- Shipped within 0-2 business days
- Shipping to United States: 3-5 business days*
- Free Shipping Included
- Embedded application development
- Evaluation of the AT91SAM9G45 processor
- Prototyping for commercial products
- Project development with Linux 2.6 or Windows CE 6.0
- Ask Claude, ChatGPT or Perplexity to find the right tool, with our live prices and stock.
- Get a ready-made basket: one link puts everything in your basket here.
- You always pay securely here: your assistant never sees your card.
- Processor: Atmel AT91SAM9G45 embedded microprocessor (eMPU)
- Maximum Speed: 400MHz
- On-Chip ROM: 64KB
- On-Chip SRAM: 64KB
- Display: 4.3-inch QVGA TFT LCD with resistive touch screen
- Connectivity: Multiple UARTs, USB host and device ports, 10/100 Ethernet
- Storage Interfaces: SD/MMC and Micro SD card
- Audio: I2S audio input/output jack
- User Controls: Two user buttons and a dedicated wake-up button
- Debugging: JTAG interface
- Expansion: 60-pin user extension interface
- Power: 5V DC connector with on-board backup battery
- Operating Systems Supported: Linux 2.6, Windows CE 6.0
- Included: CD-ROM with example programs, system resources, tools and user manual
- Weight: 1500 gm
- Width: 3.3
- Depth: 1.5
- Height: 4.3
