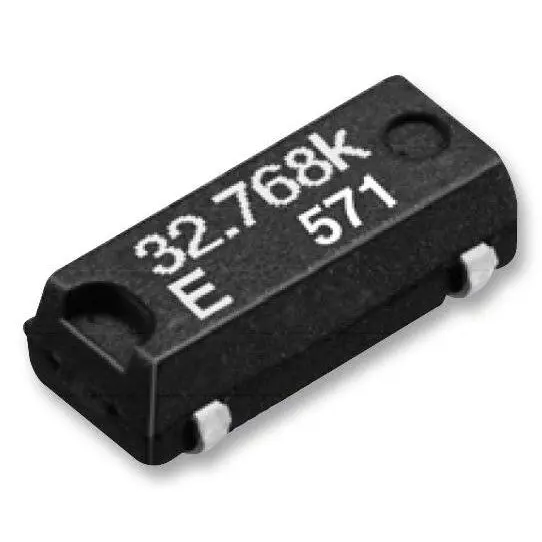

EPSON MC-306 32.768kHz Crystal Oscillator SMD 8mm x 3.8mm 6pF

The EPSON MC-306 Crystal Oscillator delivers precise timing for a wide range of electronic applications. Engineered for reliability, this SMD component offers a 32.768kHz nominal frequency with a frequency tolerance of ±20ppm and a load capacitance of 6pF. Its compact dimensions of 8.0 x 3.8 x 2.54mm make it ideal for space-constrained designs.

Designed for clock timing applications, this oscillator covers a 20kHz to 120kHz frequency range with a fundamental overtone order. It operates across a wide temperature range from -40°C to 85°C, ensuring stable performance in demanding environments. The component features a maximum Equivalent Series Resistance (ESR) of 50kΩ and an ageing rate of ±3ppm per year, providing long-term accuracy.

This SMD-mounted oscillator comes in a 4-pin package with a case size of 8mm x 3.8mm, ready for automated assembly. Its low power consumption and high stability make it suitable for consumer electronics, industrial controls, and communication devices. Trust EPSON for precise frequency control in your next project.

Specifications

• Product Range: MC-306
• Frequency Nominal: 32.768kHz
• Frequency Tolerance: ±20ppm
• Load Capacitance: 6pF
• Crystal Package: SMD, 8mm x 3.8mm
• No. of Pins: 4
• Operating Temperature Range: -40°C to +85°C
• ESR: 50kΩ Max
